Tire Placard
Tire Placard
1 - Specified Occupant Seating Positions
2 - Total Occupant Seating
3 - Maximum Vehicle Capacity Weight
4 - Tire Pressures, Front, Rear, and Spare
5 - Tire Speed Rating, Front, Rear, and Spare
6 - Tire Label Code
7 - Engineering Model Minus First Character
8 - Tire Sizes, Front, Rear, and Spare
9 - Vehicle Identification Number

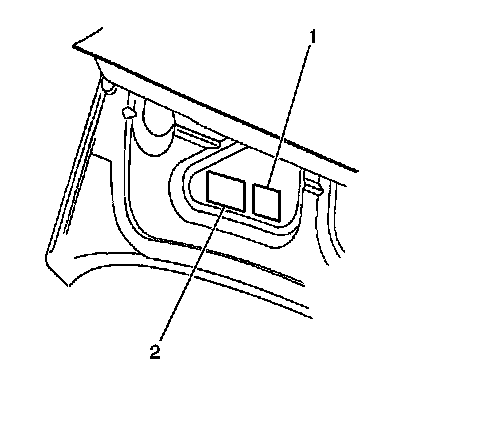

The tire placard is located on the inside of the rear compartment lid (2). Refer to the tire placard to obtain the following information:
* Maximum vehicle capacity weight
* Cold tire inflation pressures
* Original equipment tire sizes
* Original equipment tire speed ratings
