Rear Seat Cushion Replacement

Rear Seat Cushion Replacement

Removal Procedure

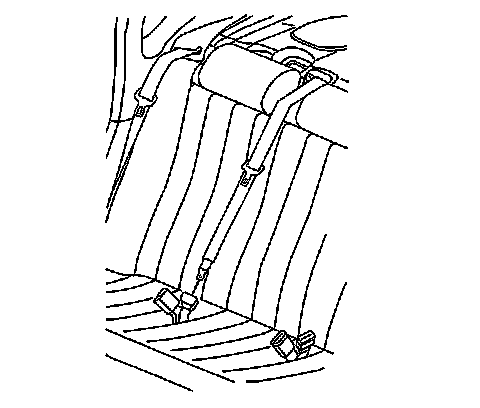

1. Pull the tabs on the rear seat cushion retainers in order to release the rear seat cushion.
2. Remove the rear seat cushion by lifting up and pulling out of the retainer.
3. Remove the rear seat cushion from the vehicle.

Installation Procedure




1. Align the seat belts to the notches in the rear seat cushion.




2. Position the rear seat cushion to the retainers.
3. Install the rear seat cushion to the retainers, engaging the right side first longer tab then the left side.
4. Inspect the rear seat cushion for proper installation.
