Power Seat Riser Trim Cover Replacement

Power Seat Riser Trim Cover Replacement

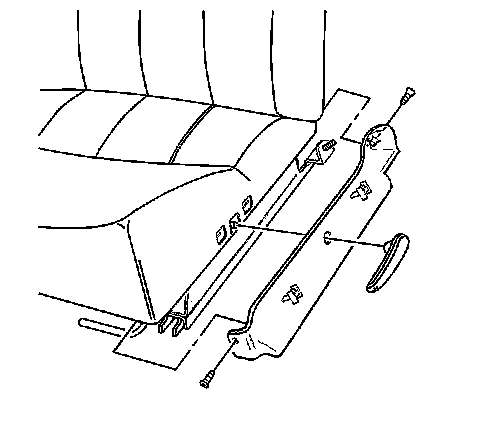

Removal Procedure

1. Use a flat-bladed tool in order to carefully release the retainer from the base of the recliner handle.
2. Remove the recliner handle.




3. Remove the finish panel screws.
4. Pull the finish panel away from the seat cushion frame in order to release the clips.
Discard the clips.
5. Disconnect the power seat switch electrical connector, if equipped.
6. Remove the finish panel from the seat.

Installation Procedure




1. Install the finish panel to the seat.
2. Connect the power seat switch electrical connector, if equipped.
3. Use new clips in order to snap the finish panel to the seat cushion frame.

Notice: Refer to Fastener Notice in Cautions and Notices.

4. Install the finish panel screws.

Tighten the finish panel screws to 3 Nm (27 lb in).

5. Install the retainer to the base of the recliner handle.
6. Install the recliner handle.
