Compressor Clutch Coil
>>
HVAC System - Automatic
HVAC System - Automatic

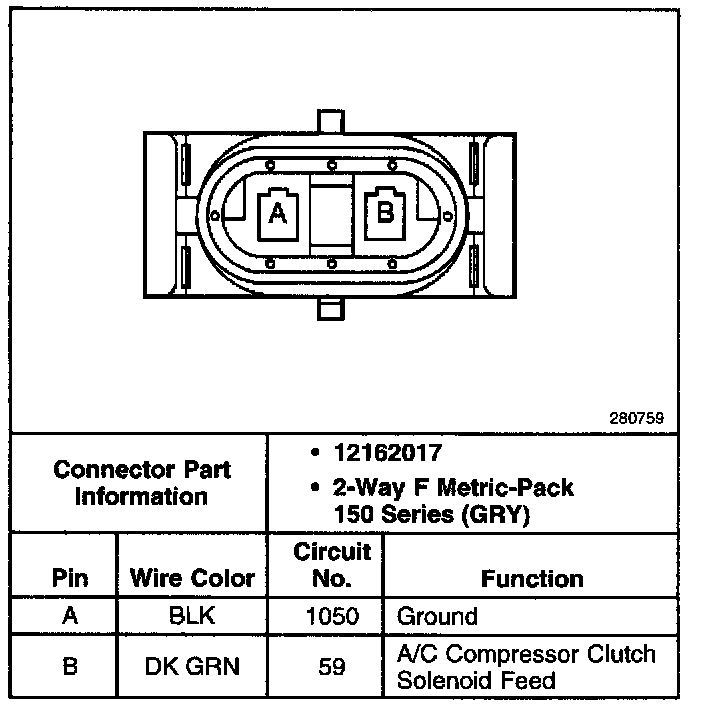

A/C Compressor Clutch Coil:
