Rear COMP Lid Lock Release Actuator
Rear COMP Lid Lock Release Actuator

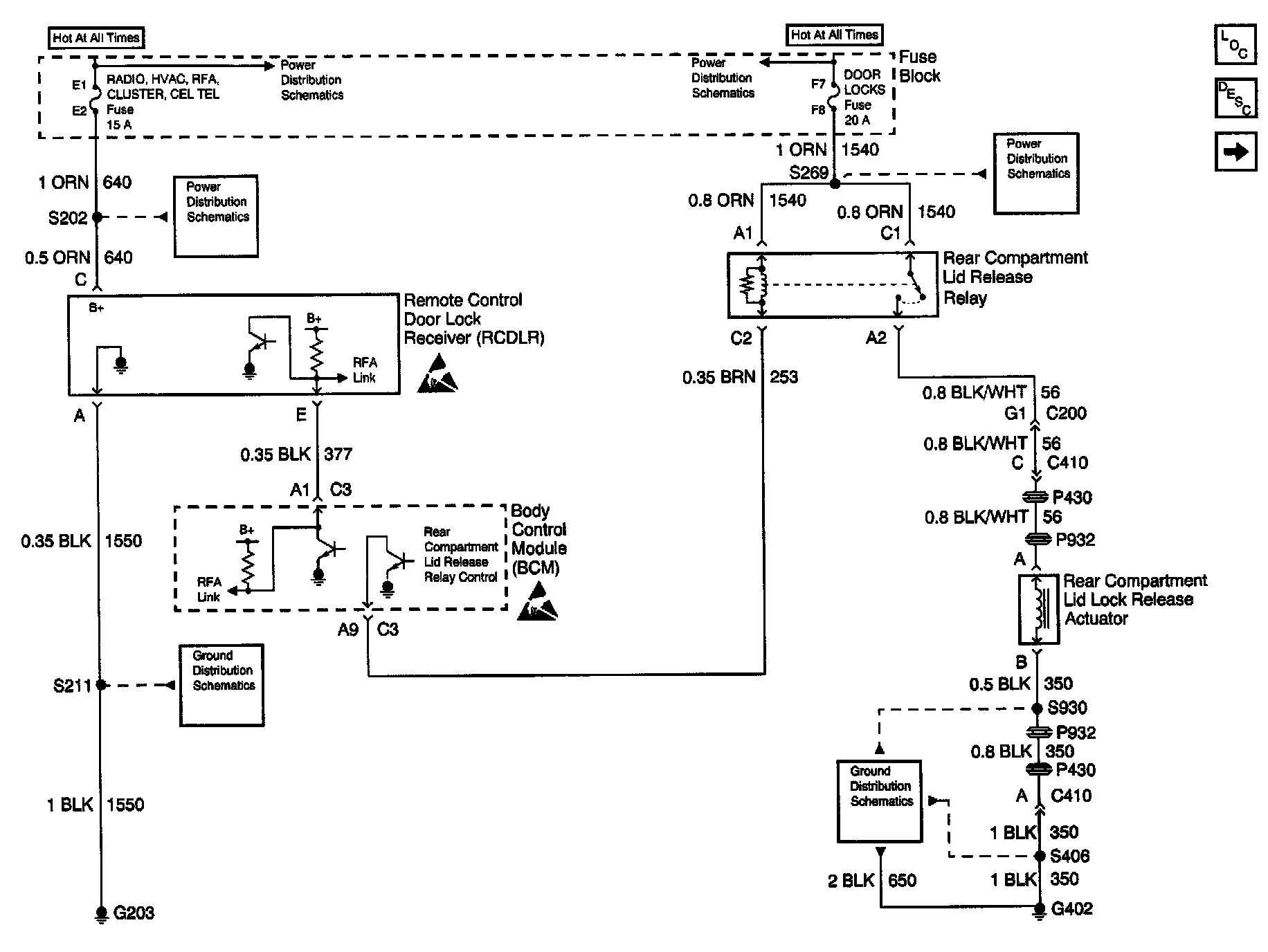

Keyless Entry Schematics : Power, Ground, Rear Compartment Lid Release Relay And Rear Compartment Lid Lock Release Actuator:
