EBCM Input and Supercharger Boost Control Solenoid

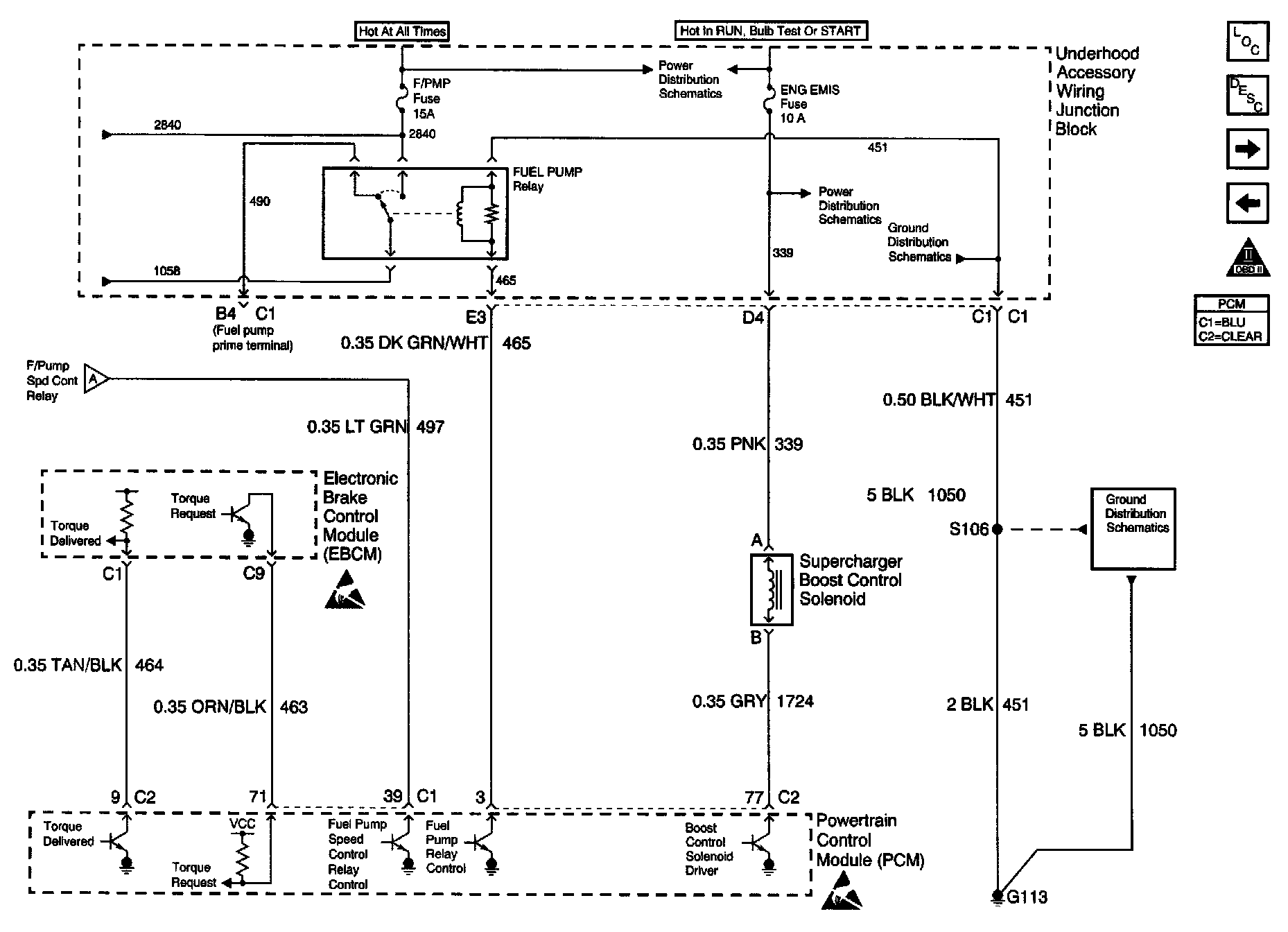

Engine Controls Schematics: EBCM Input and Supercharger Boost Control Solenoid:
