Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
2000
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

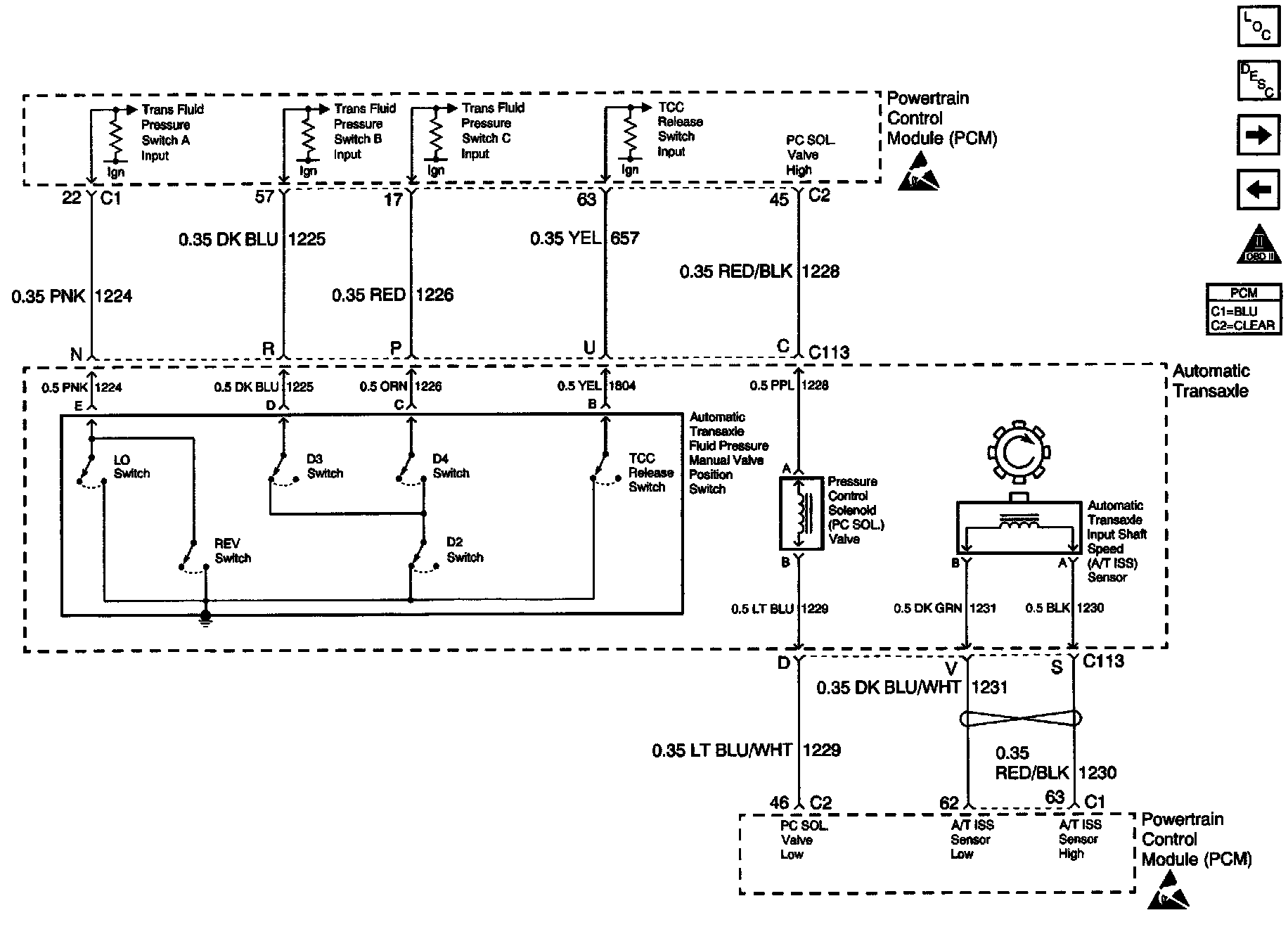

Transmission Fluid Pressure Inputs
Transmission Fluid Pressure Inputs
