Tilt Spring - Disassemble
Disassembly Procedure1. Remove the upper and lower shrouds. Refer to Steering Column Trim Covers - Disassemble -Off Vehicle (Column Shift) or Steering Column Trim Covers - Disassemble - Off Vehicle (Floor Shift ).
2. Use the tilt lever to tilt the column to the "up" position.
Caution: The tilt spring and the spring guide are under pressure and could become a projectile. During the disassembly and assembly procedures, secure the tilt spring with locking pliers. Exercise caution when removing or Installing the tilt spring and the spring guide, as bodily injury may result.

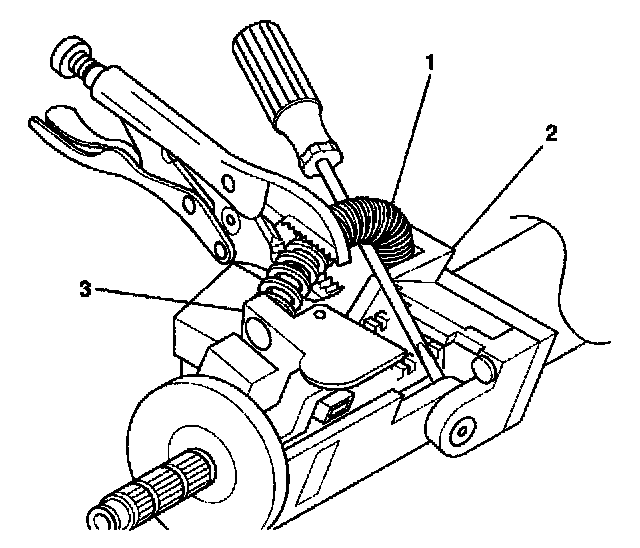

3. Remove the tilt spring (1) from the steering column support assembly (2) and from the steering column tilt head assembly (3) by using the following procedure.
3.1. Pry up the tilt spring (1) until a bulge occurs and most of the tilt spring tension is removed.
3.2. Secure the tilt spring (1) with locking pliers.
3.3. Continue prying up the tilt spring (1) until the tilt spring disengages from the post on the steering column support assembly (2) and from the steering column tilt head assembly (3).
4. Remove the spring guide (1) from the tilt spring (2).
