Window Frame: Service and Repair

REMOVAL PROCEDURE




1. Close the window.
2. Remove the trim panel.
3. Remove the water deflector.
4. Loosen the 2 front window run channel bolts (2).
5. Lift the channel so that the fasteners will clear the keyhole slots in the door panel.

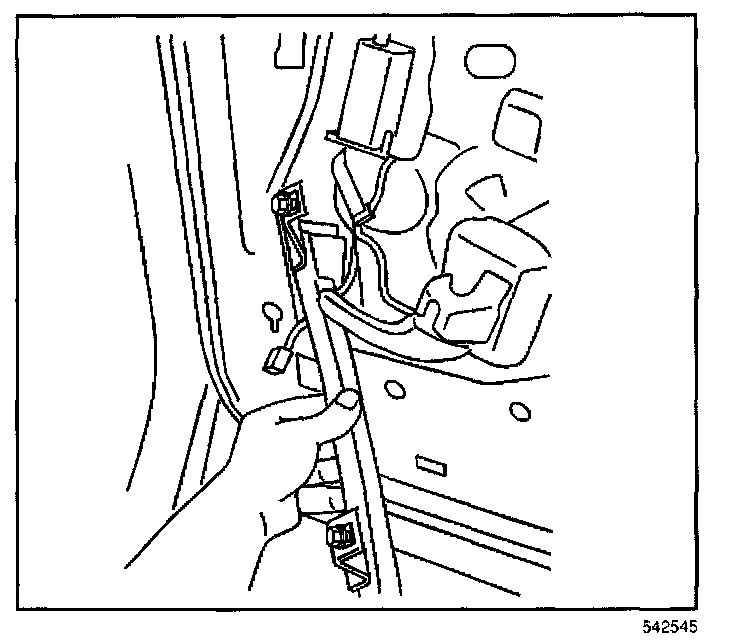

6. Remove the front window run channel through the opening in front of the window module.

INSTALLATION PROCEDURE

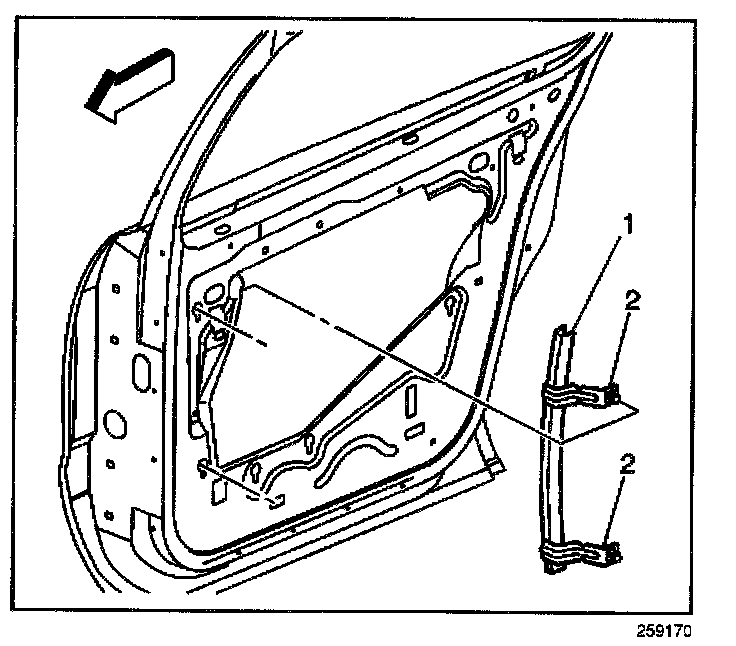

1. Install the front window run channel (1).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Tighten the 2 front window run channel bolts (2).

Tighten
Tighten the 2 front window run channel bolts to 9 N.m (80 lb in).

3. Install the water deflector.
4. Install the trim panel.
