Not Using J 42958 Cruise Control Tester

DIAGNOSTIC AIDS
To avoid misdiagnosis:
^ Inspect for proper operation of the brake lamps.
^ Inspect throttle linkage for mechanical binding which could cause the system to malfunction.
^ Inspect cruise control cable for adjustment, should have minimum slack.
^ Inspect for stored Diagnostic Trouble Codes (DTCs) in the PCM.
^ EMI on the speed sensor signal circuit may cause erratic cruise control operation.

CONDITIONS FOR ENABLING CRUISE CONTROL
^ When vehicle speed is more than 40 km/h (25 mph).
^ When PARK, REVERSE, NEUTRAL, or 1st gear IS NOT indicated.
^ When an over/undercharged battery condition DOES NOT exist.
^ With normal engine RPM.
^ Without high engine RPM (fuel cut-off).

TEST

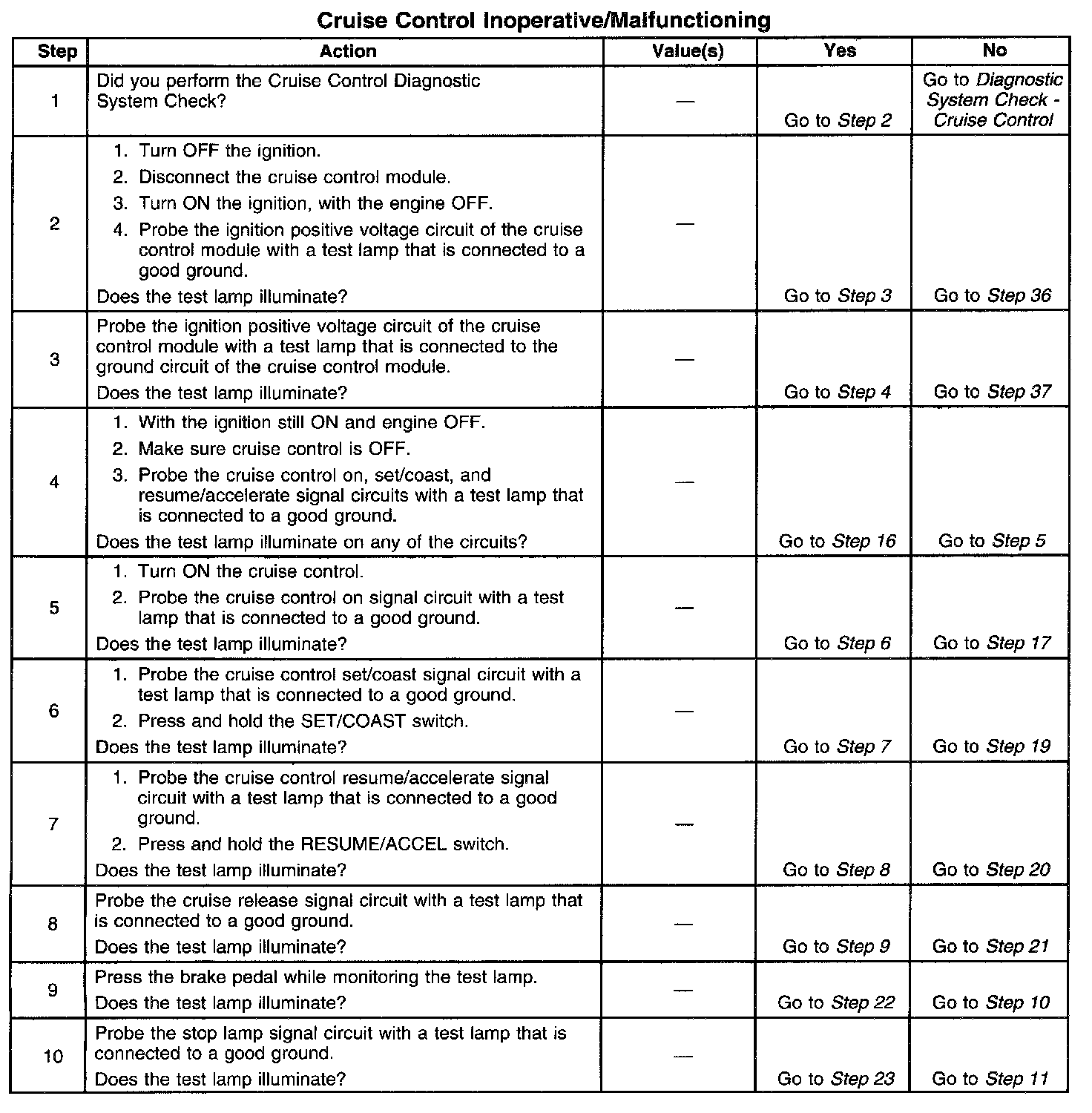

Steps 1-10:

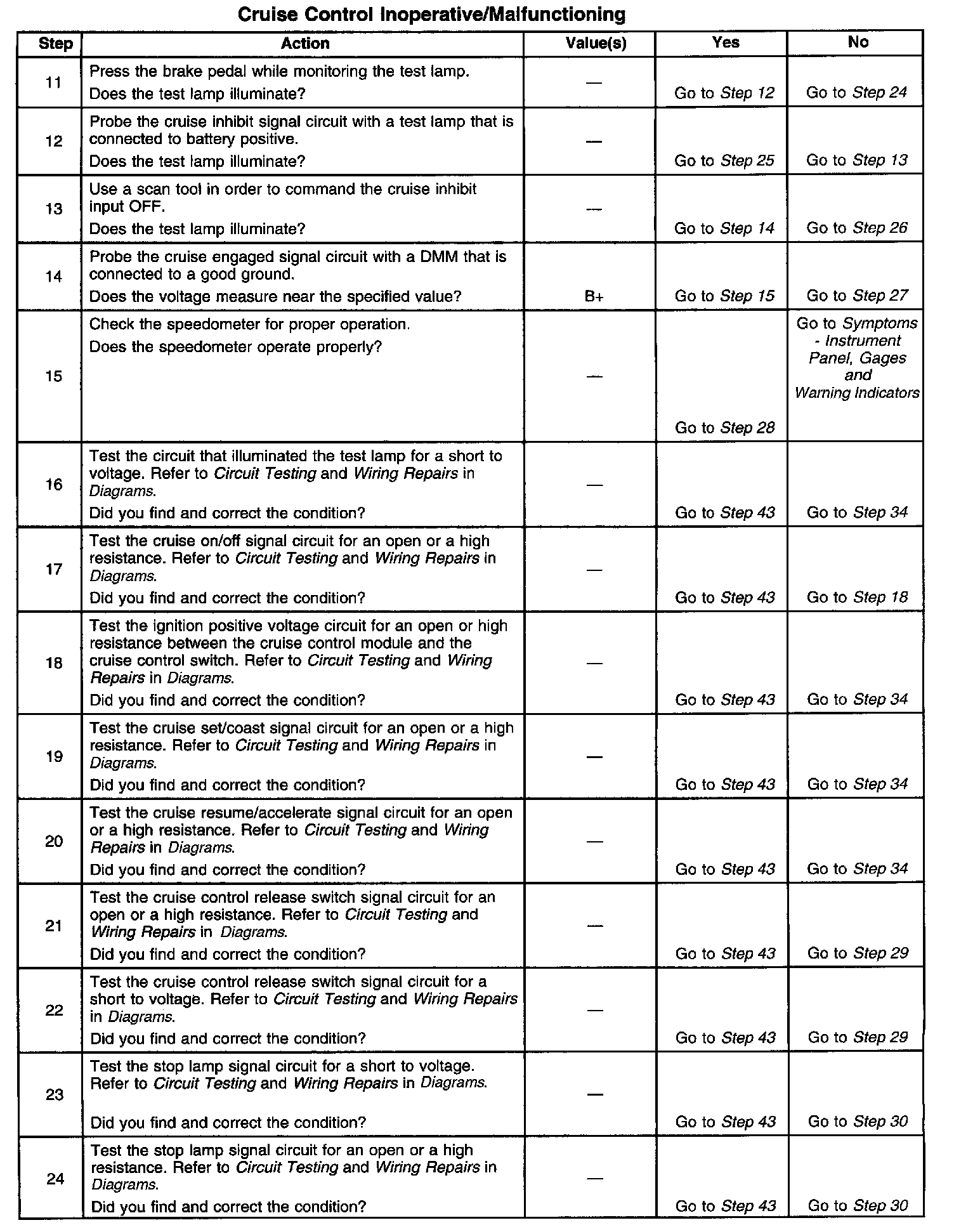

Steps 11-24:

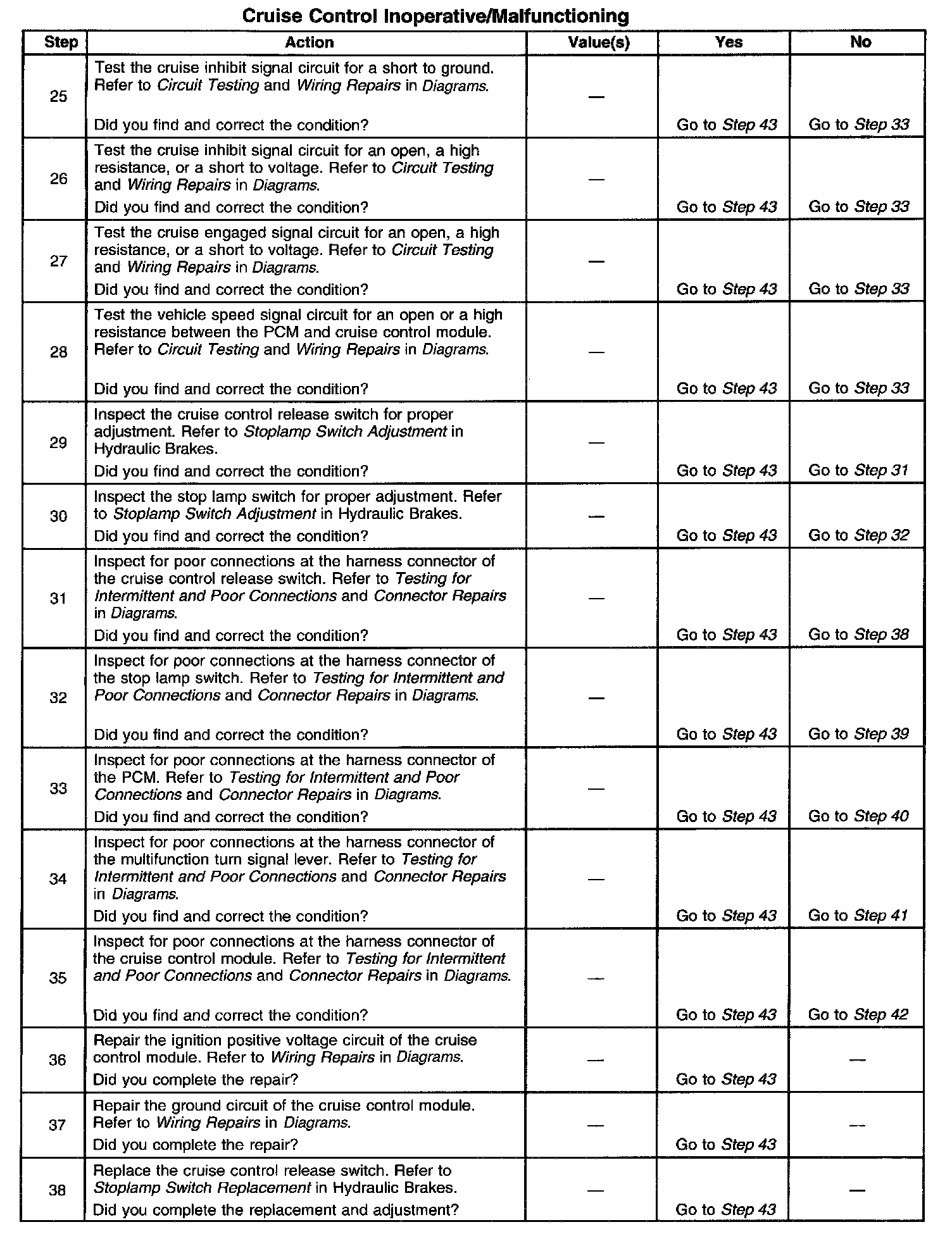

Steps 25-38:

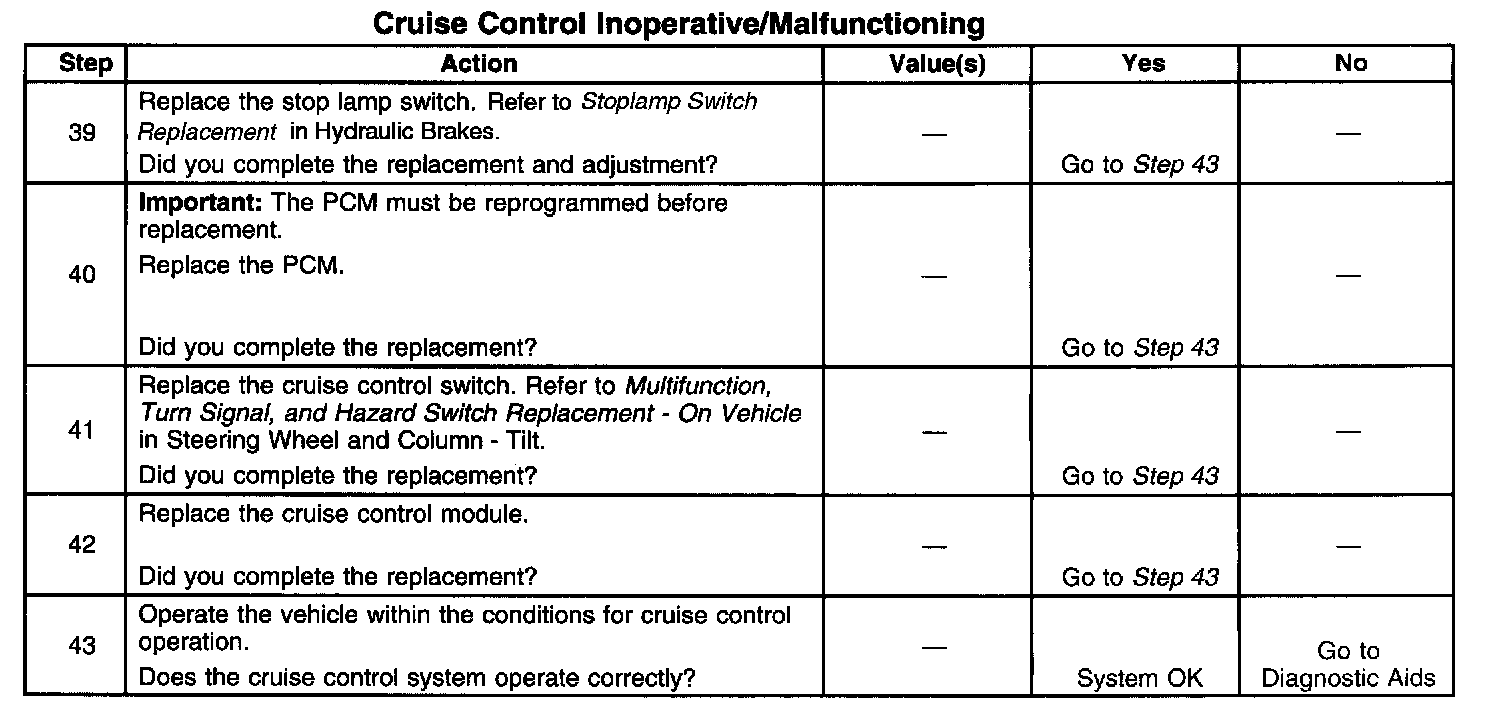

Steps 39-43:
