68. Engine Block Plug Installation

Engine Block Plug Installation

Notice: Refer to Fastener Notice in Service Precautions.

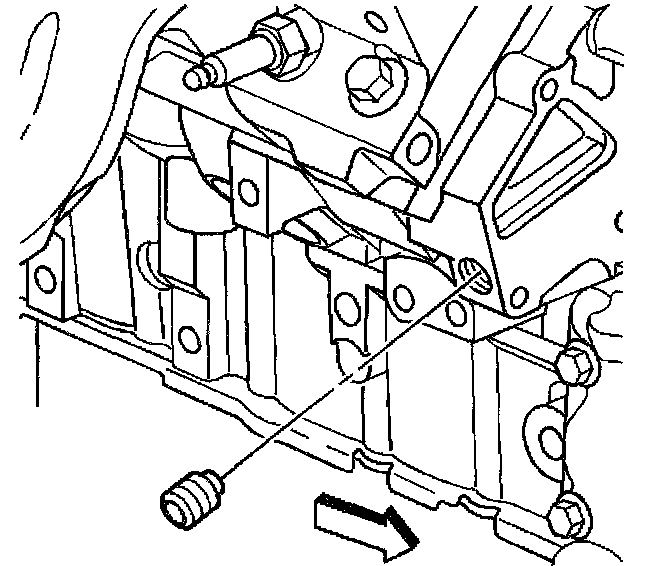

1. Install the threaded oil gallery plugs.
- Tighten the oil gallery plugs to 30 Nm (22 ft. lbs.).





2. Install the remaining oil gallery plugs using GM P/N 12346004 sealant or equivalent.
