Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE




1. Remove the right side instrument panel insulator.

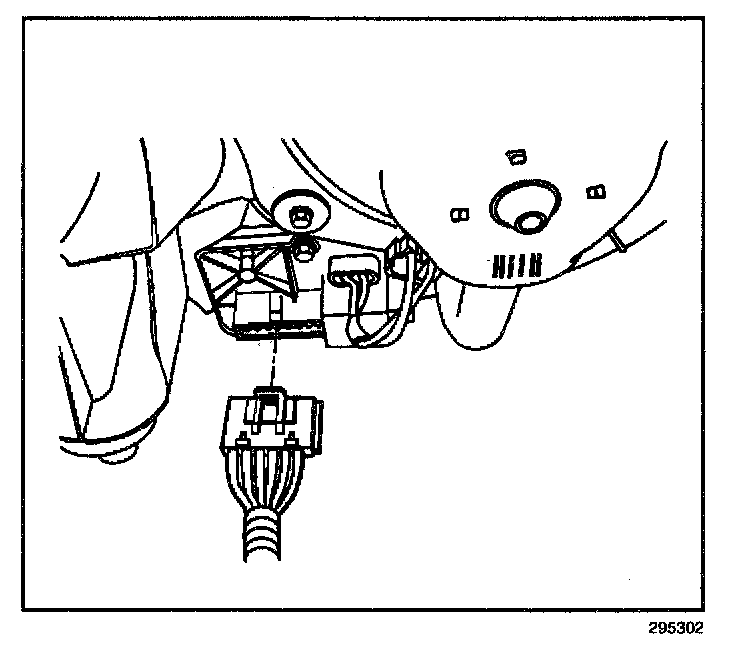

2. Disconnect the blower motor resistor electrical connector.

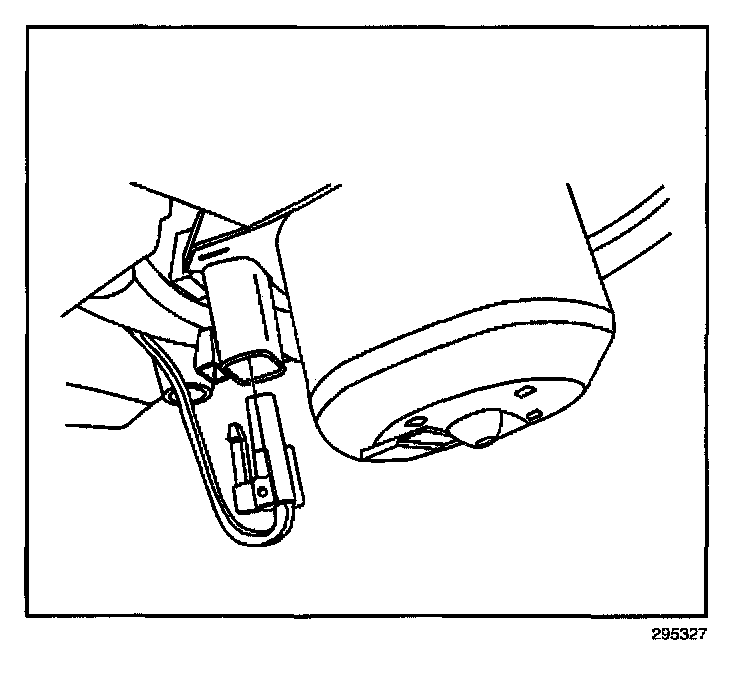

3. Disconnect the blower motor electrical connector

IMPORTANT: The blower motor resistor opening is slotted. Access is extremely limited.

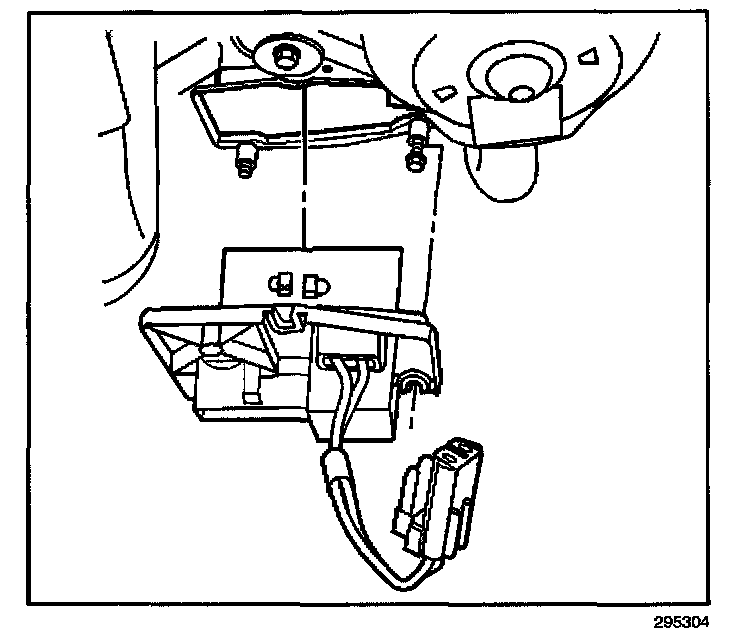

4. Loosen both forward blower motor resistor screws.
5. Remove the rear blower motor resistor screw.
6. Remove the blower motor resistor.

INSTALLATION PROCEDURE




1. Install the blower motor resistor.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the rear blower motor resistor screw.

Tighten
Tighten all blower motor resistor screws to 1.5 N.m (13 lb in).

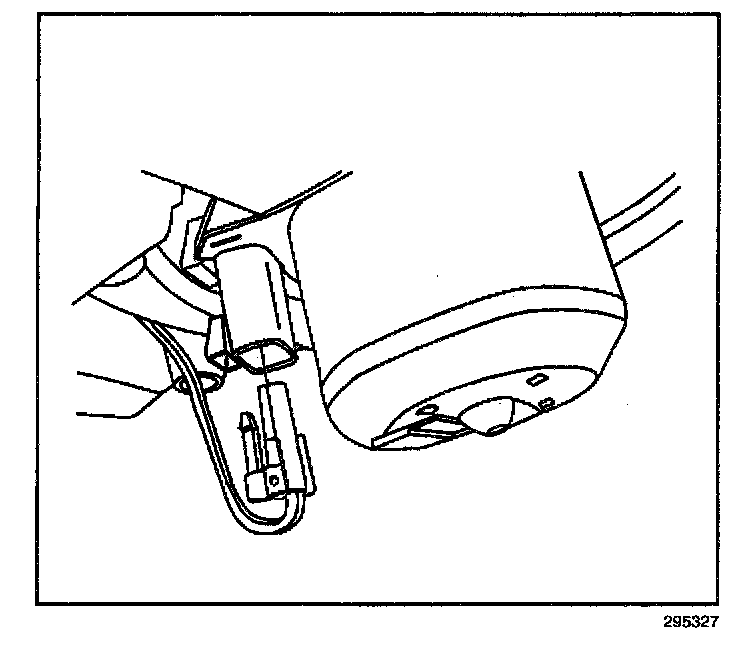

3. Connect the blower motor electrical connector.




4. Connect the blower motor resistor electrical connector.
5. Install the right side instrument panel insulator.
