A/C Refrigerant Pressure Sensor Replacement

A/C REFRIGERANT PRESSURE SENSOR REPLACEMENT

TOOLS REQUIRED
J 39400-A Halogen Leak Detector

REMOVAL PROCEDURE




1. Remove the air cleaner assembly.

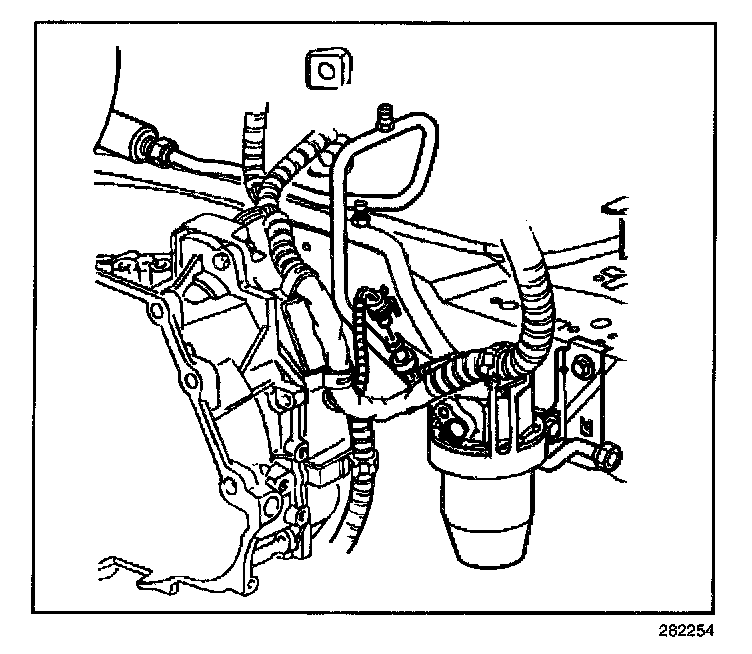

2. Disconnect the A/C refrigerant pressure sensor from the electrical connector.

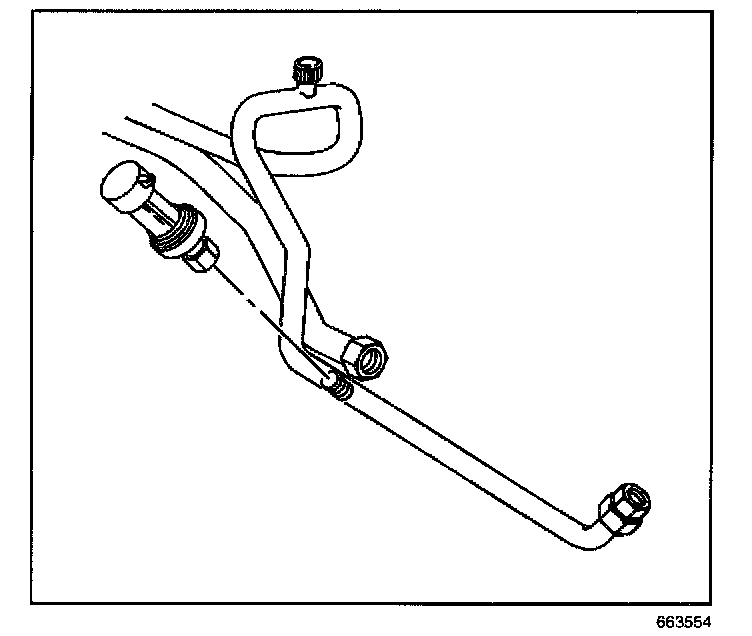

3. Remove the A/C refrigerant pressure sensor from the condenser tube.

INSTALLATION PROCEDURE

IMPORTANT: Lubricate a new O-ring seal with mineral base 525 viscosity refrigerant oil.




1. Install the new O-ring seal. Refer to O-ring Replacement.

NOTE: Refer to Fastener Notice in Service Precautions.

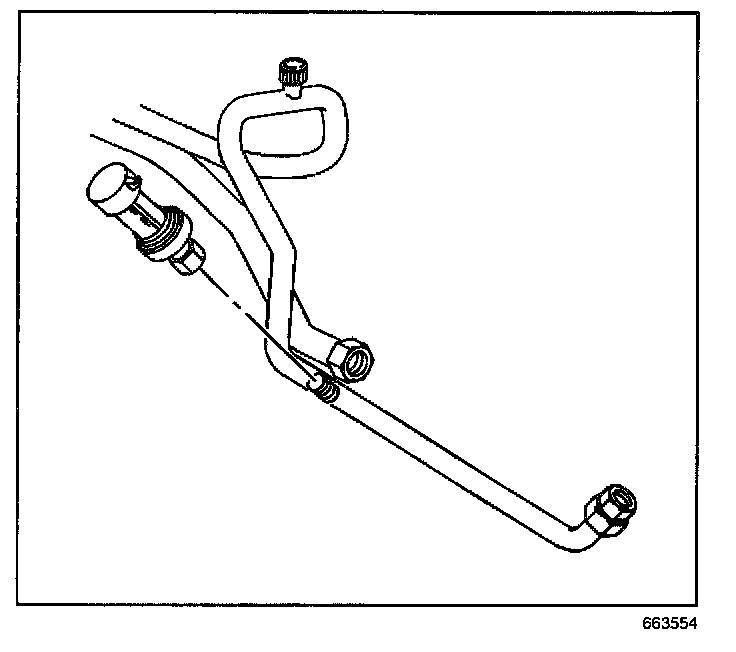

2. Install the A/C refrigerant pressure sensor to the condenser tube.

Tighten
Tighten the A/C refrigerant pressure sensor to 4.7 N.m (41 lb in).

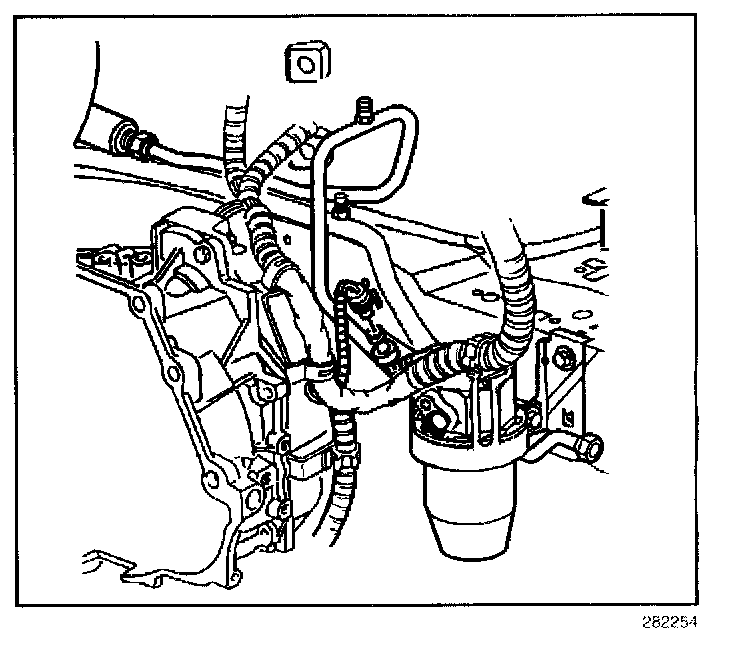

3. Connect the A/C refrigerant pressure sensor to the electrical connector.
4. Install the air cleaner assembly.
5. Leak test the fittings of the component using J 39400-A.
