Oil Pressure Sensor: Service and Repair

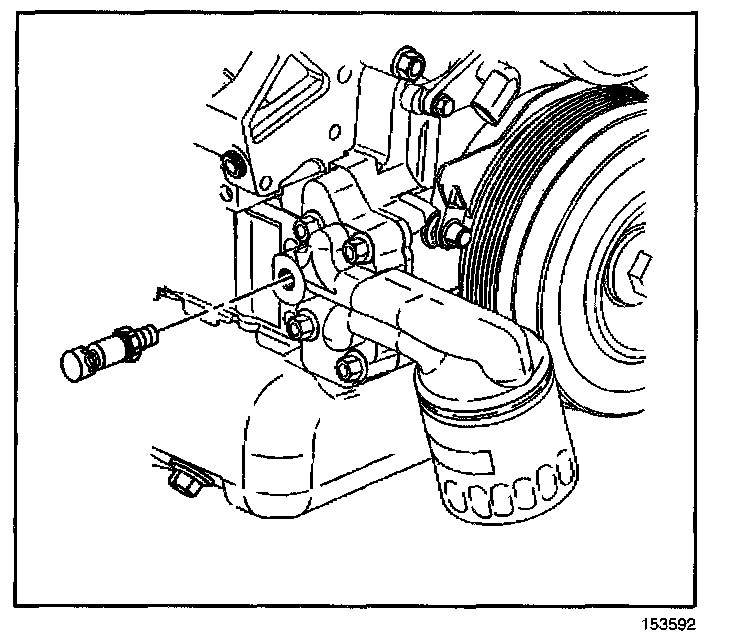

ENGINE OIL PRESSURE SENSOR OR SWITCH REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
3. Disconnect the electrical connector from the engine oil pressure sensor.
4. Remove the engine oil pressure sensor.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the engine oil pressure sensor.

Tighten
Tighten the engine oil pressure switch-3.1L and 3.8L to 16 N.m (12 lb ft).

2. Connect the electrical connector to the engine oil pressure sensor.
3. Lower the vehicle.
4. Connect the negative battery cable.
