Automatic Transmission/Transaxle

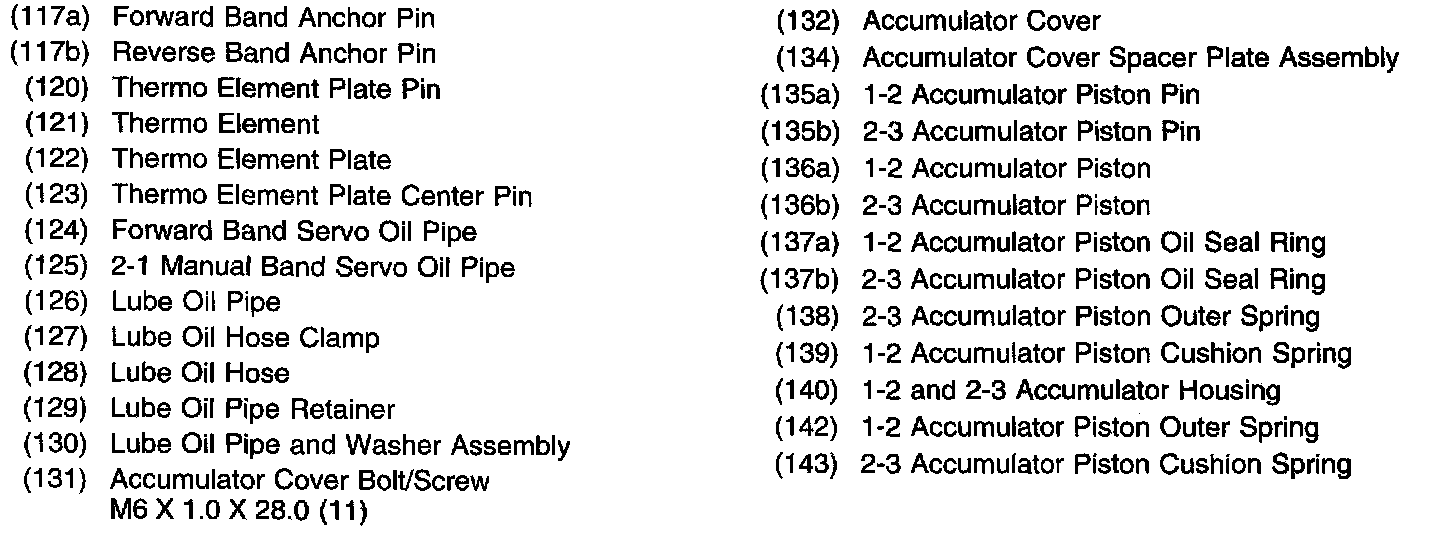

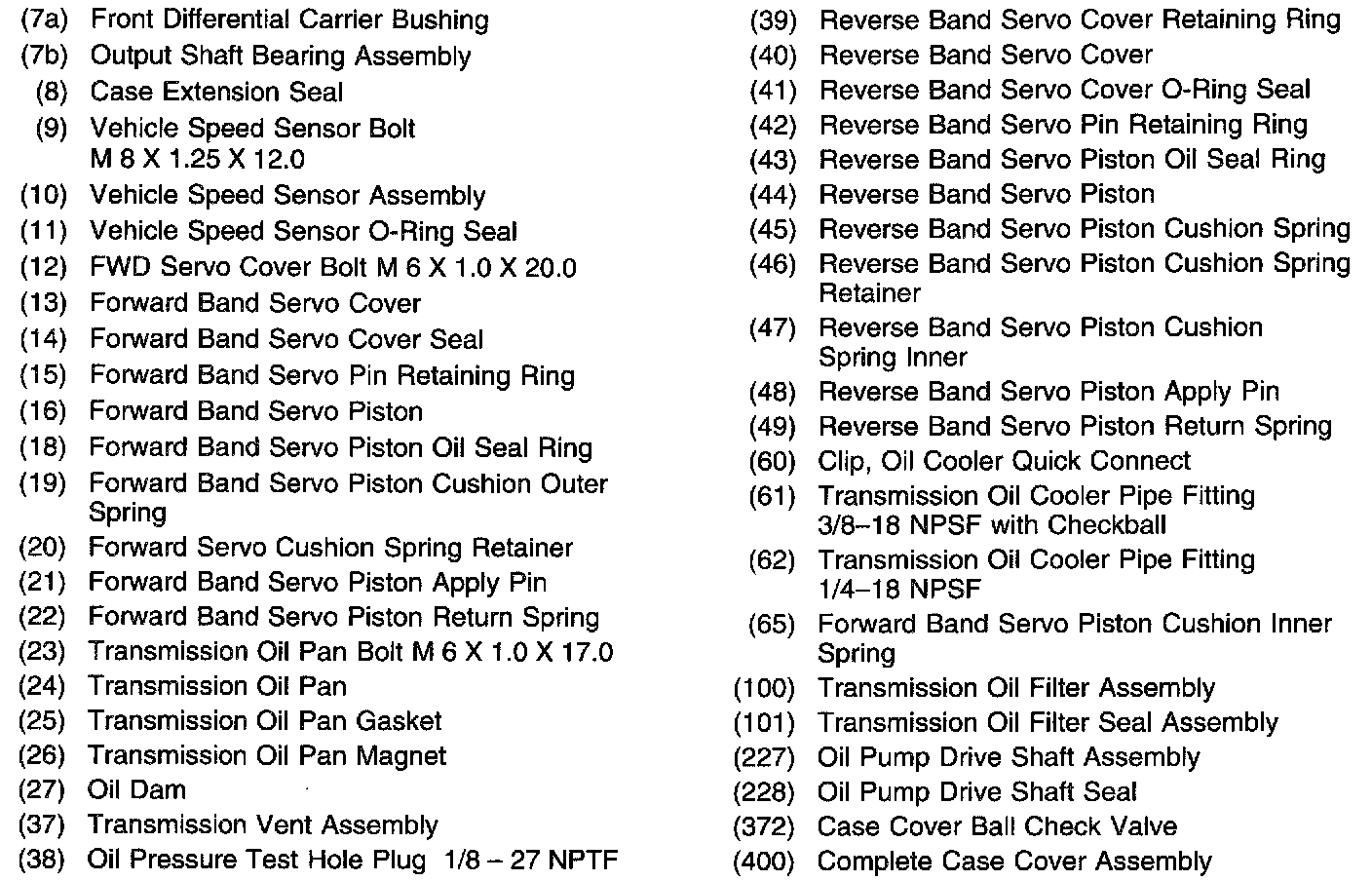

Case and Associated Parts (1 of 4)








Case and Associated Parts (2 of 4)








Case and Associated Parts (3 of 4)








Case and Associated Parts (4 of 4)





Oil Pump Assembly

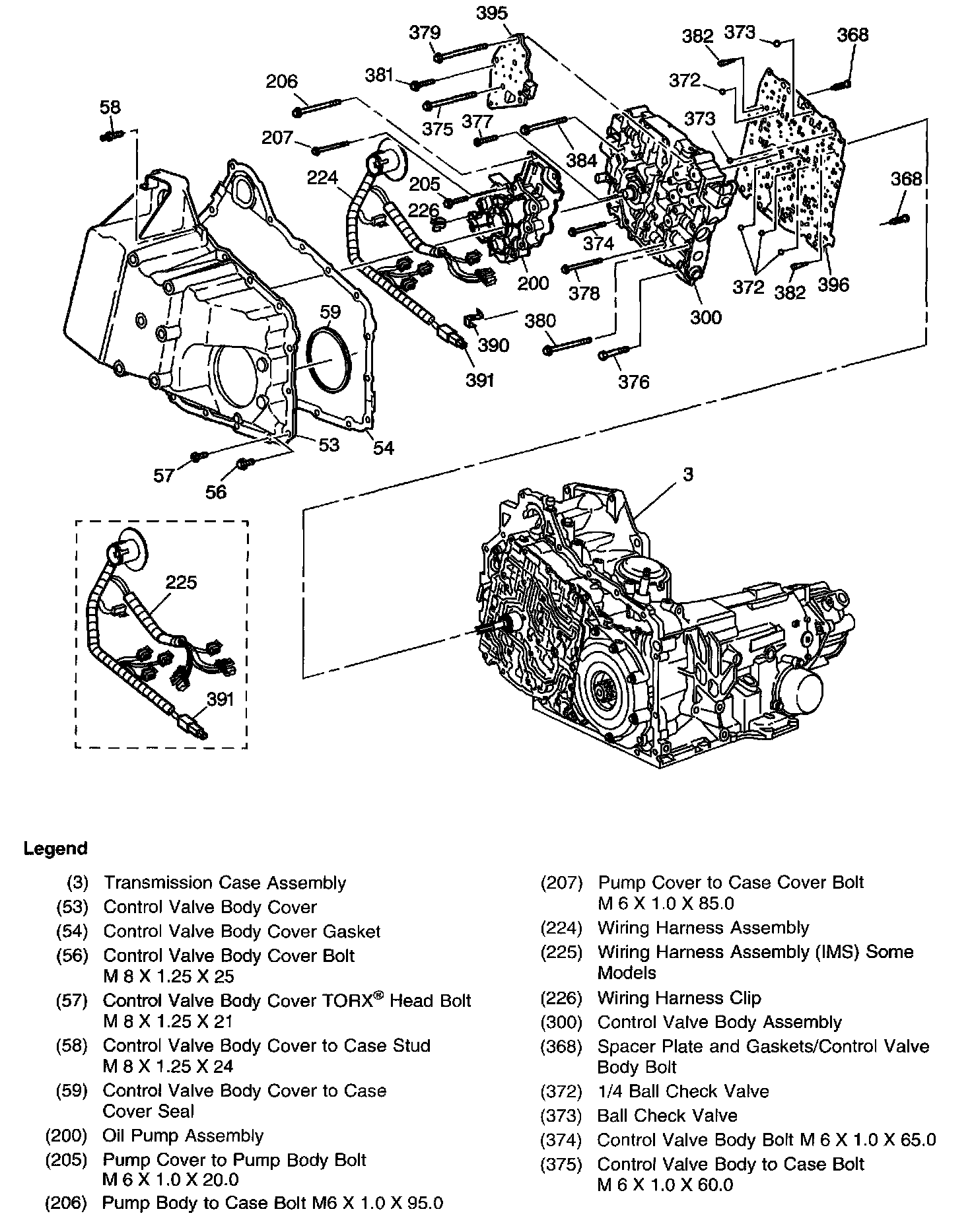

Control Valve Body Assembly (1 of 2)





Control Valve Body Assembly (2 of 2)

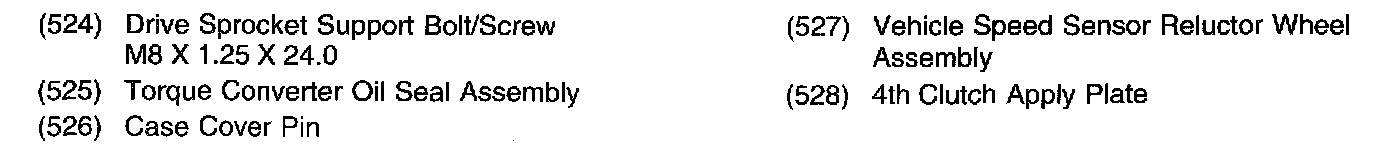

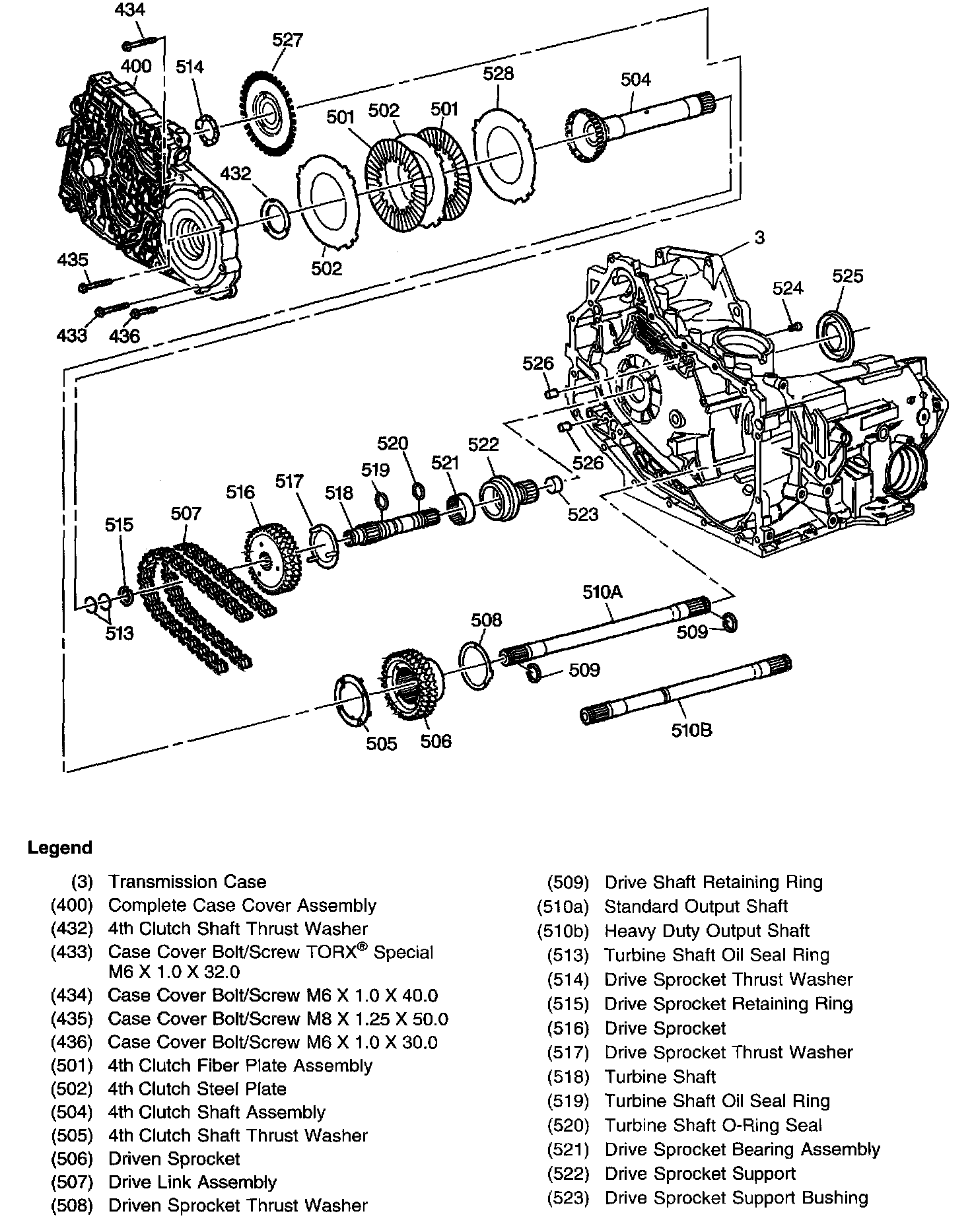

Case Cover Assembly

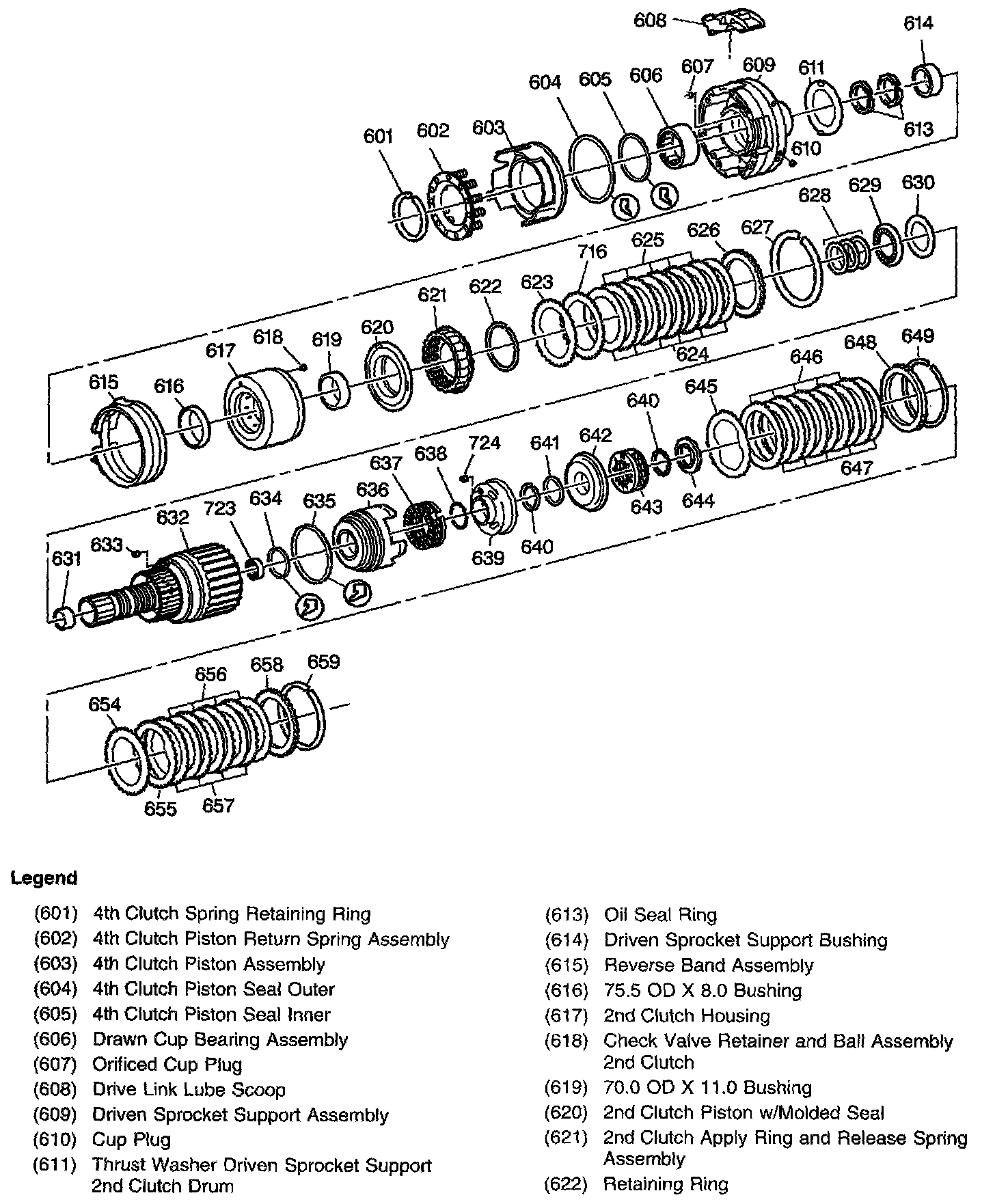

Internal Components (1 of 2)

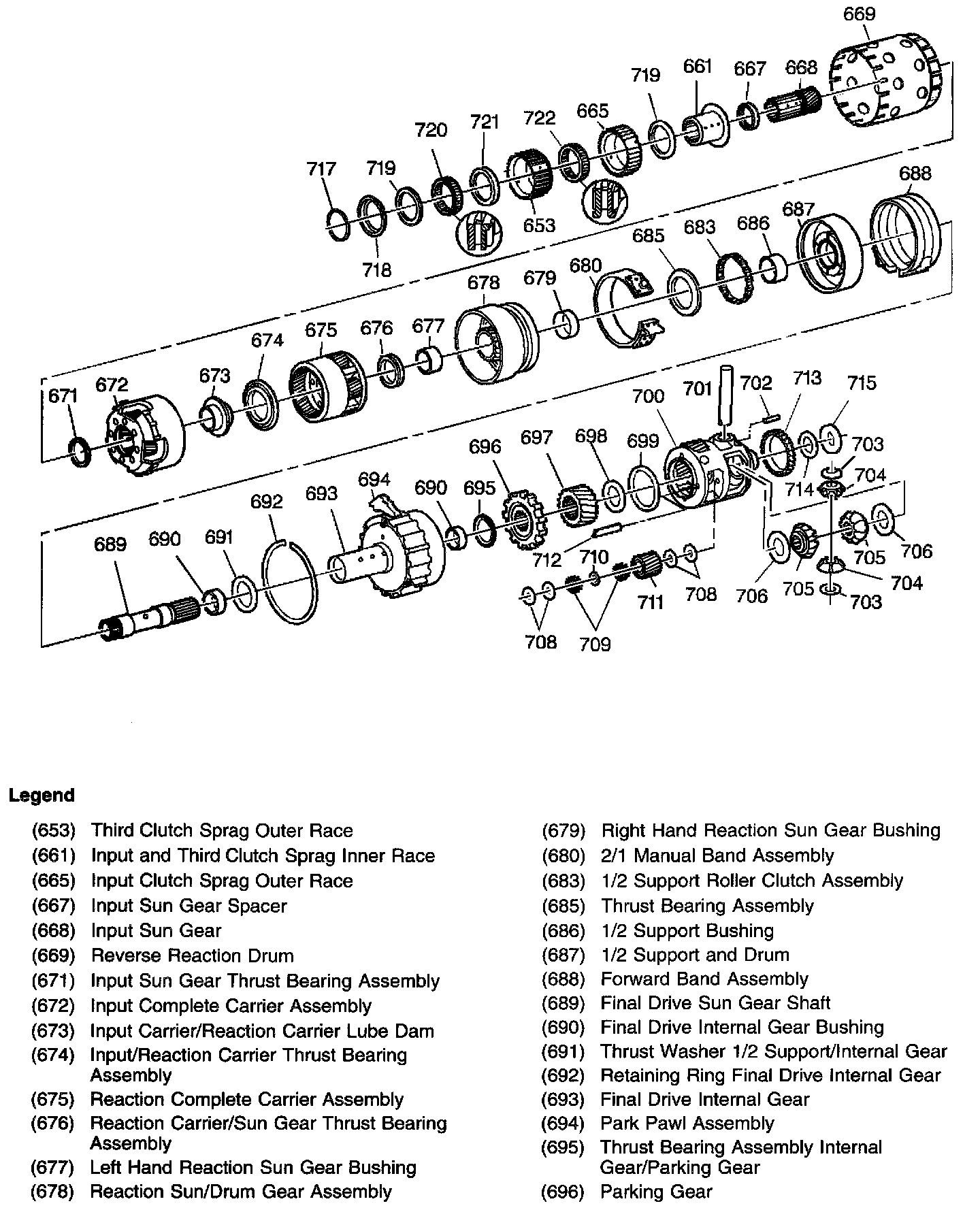

Internal Components (2 of 2)





Manual Shaft and Parking System Assembly
