HVAC System - Manual

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) accessory trim plate.
2. Remove the front floor console.

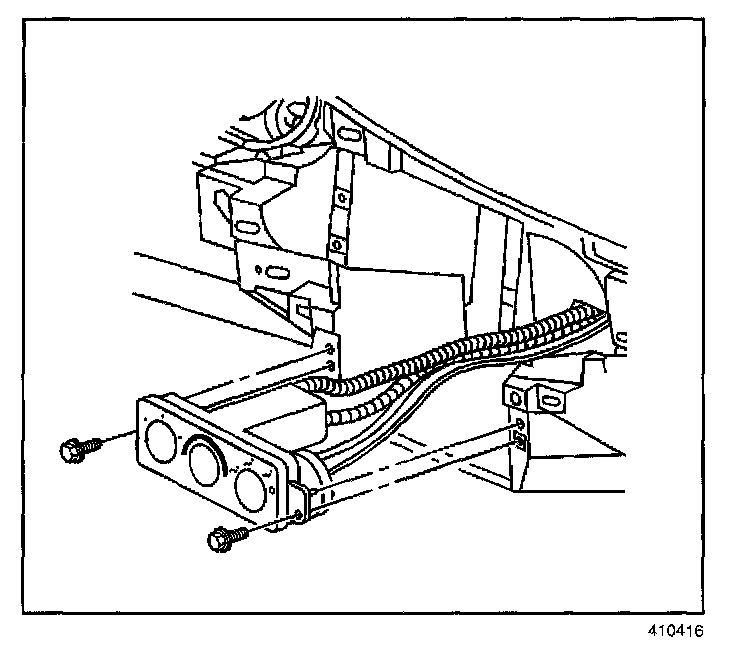

3. Remove the retaining screws from the HVAC control assembly.
4. Pull the HVAC control assembly out from the IP.

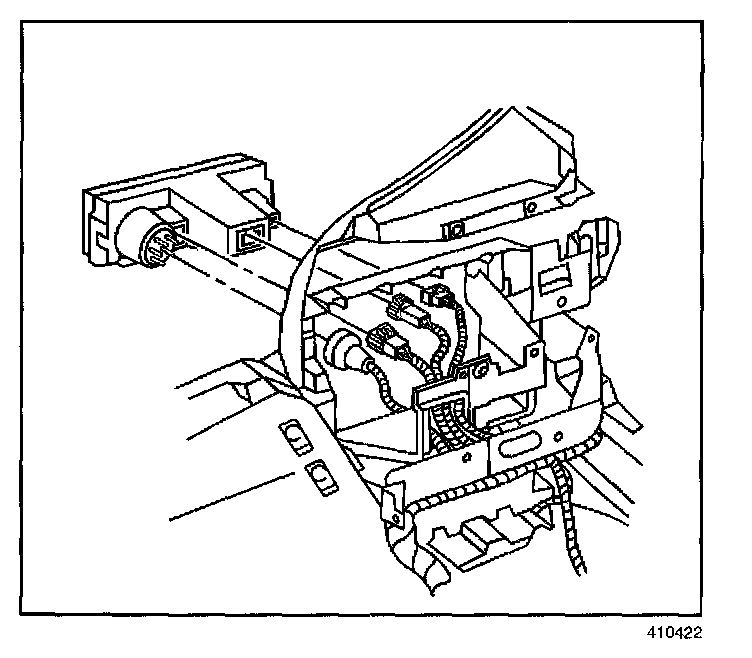

5. Disconnect the electrical connectors and the vacuum harness, if equipped, from the HVAC control assembly.
6. Remove the HVAC control assembly.

INSTALLATION PROCEDURE




1. Connect the electrical connectors and the vacuum harness, if equipped, to the HVAC control assembly.




2. Install the HVAC control assembly into the IP.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the retaining screws to secure the HVAC control assembly.

Tighten
Tighten the screws to 2 N.m (18 lb in).

4. Install the accessory trim plate.
5. Install the front floor console.
