Solar Sensor: Service and Repair

SUN LOAD SENSOR REPLACEMENT

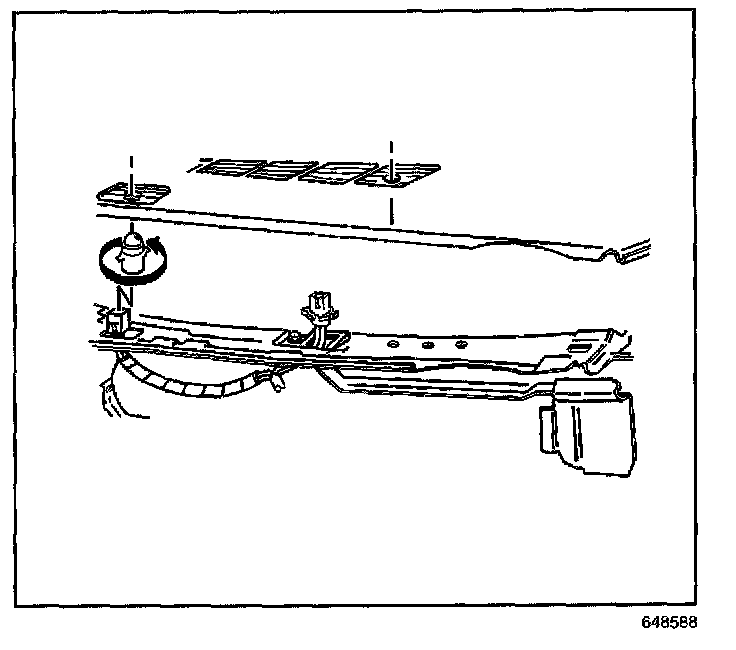

REMOVAL PROCEDURE




1. Remove the instrument panel upper trim pad.
2. Disconnect the sunload air temperature sensor and the daytime running lamp light sensor from the defroster grille.
3. Disconnect the electrical connector to the sun load air temperature sensor.
4. Remove the sunload sensor.

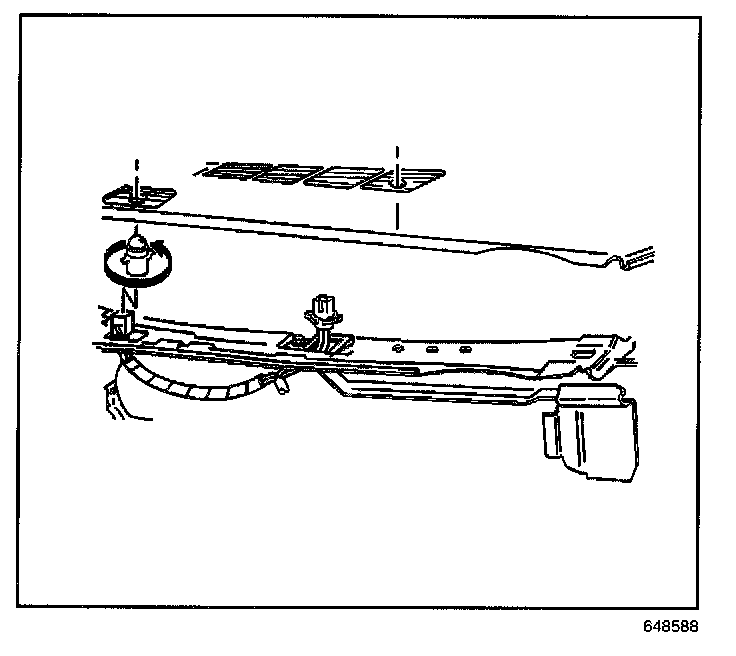

INSTALLATION PROCEDURE




1. Connect the electrical connector to the sun load sensor.
2. Install the sun load air temperature sensor and the daytime running lamp light sensor to the defroster grille.
3. Install the instrument panel upper trim pad.
