Air Register: Service and Repair

Defroster Grille Replacement (with HUD)

Removal Procedure




1. Remove the defroster grille by carefully prying upward in order to release the retainers.
2. Disconnect the electrical connector from the sensor (1).
3. Twist the sensor counterclockwise to remove.

Installation Procedure

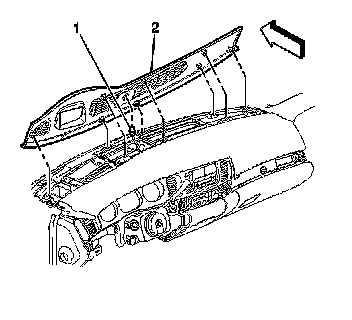

1. Align the lock tabs on the sensor (1) to the openings in the defroster grill (2).
2. Twist the sensor clockwise in order to secure the sensor to the defroster grill.
3. Connect the electrical connector to the sensor.
4. Align the tabs on the defroster grill to the openings in the IP carrier.
5. Install the defroster grille to the carrier by pressing down in order to secure.
