Jacking

When lifting a vehicle with a vehicle jack or a floor jack, block the wheels at the opposite end from which you are lifting. Use jack stands to provide additional support.

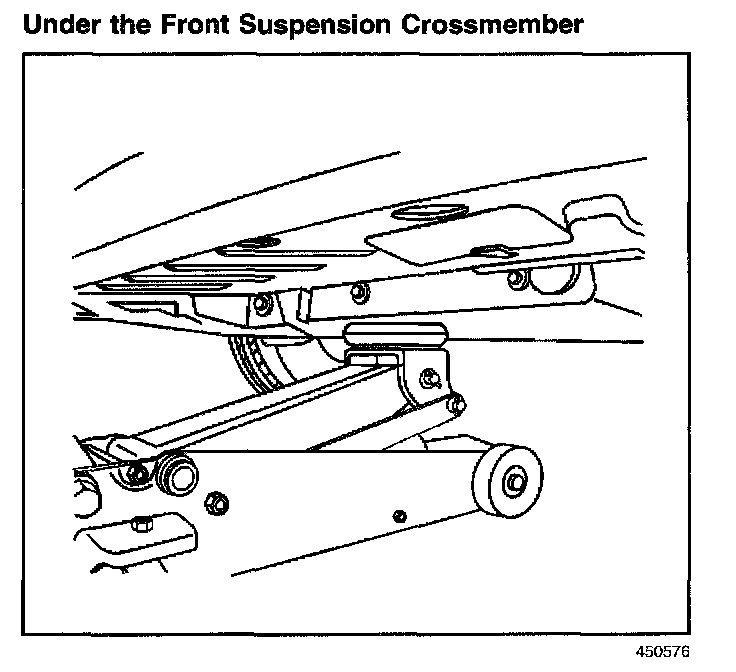

Under The Front Suspension Crossmember:




Position the floor jack pad under the front frame rail reinforcements.

IMPORTANT: The floor jack pad must not contact the rocker panel or floor pan.

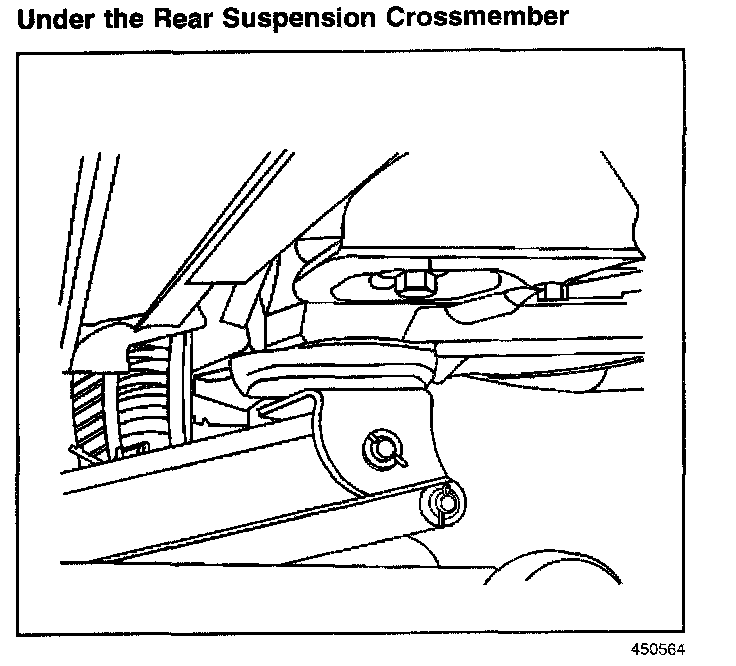

Under The Rear Suspension Crossmember:




Position the floor jack pad under the rear crossmember.

Under the Front and Rear Control Arms
Jacking on the control arm is not recommended.
