Air Temperature Switch Assembly Replacement - Right

REMOVAL PROCEDURE




1. Remove the right IP trim plate.

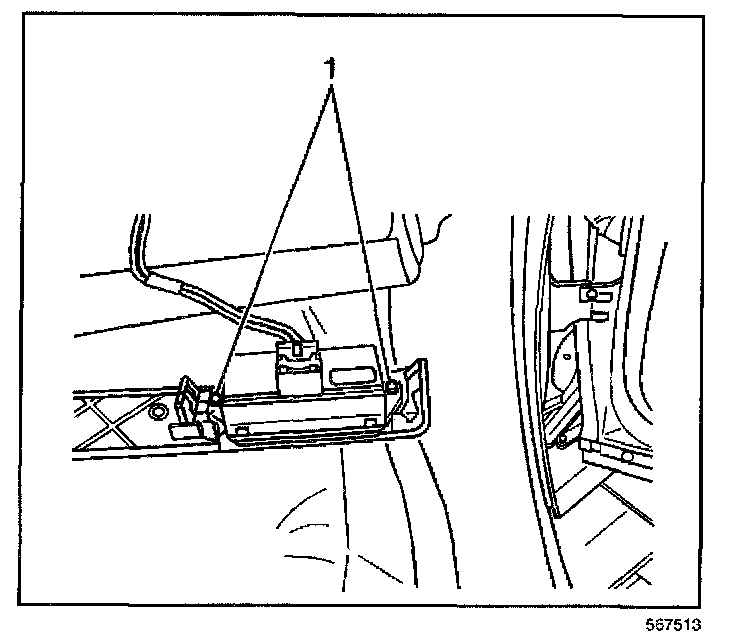

2. Remove the two retaining screws (1) from the right air temperature switch assembly.
3. Remove the right air temperature switch assembly.

INSTALLATION PROCEDURE




1. Install the right air temperature switch assembly into the trim plate.

NOTE: Refer to Fastener Notice in Service Precautions.

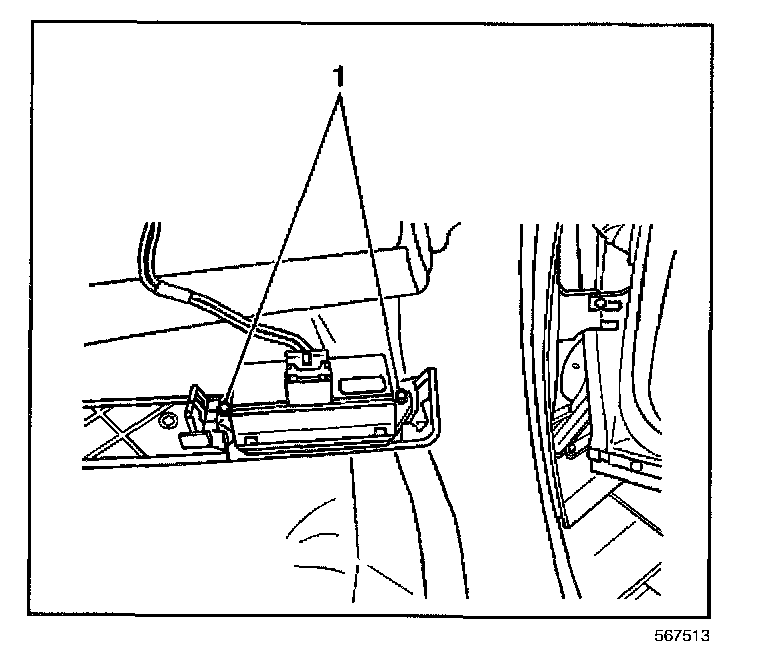

2. Install the screws (1)

Tighten
Tighten the screws to 1.4 N.m (12 lb in).

3. Install the IP trim plate.
