Speaker

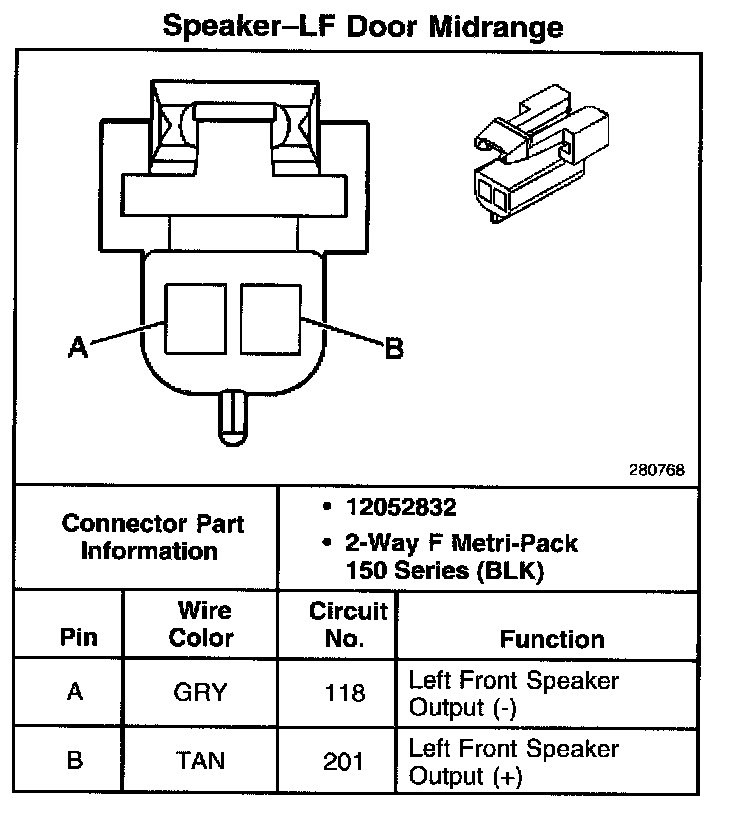

Speaker - LF Door Midrange:

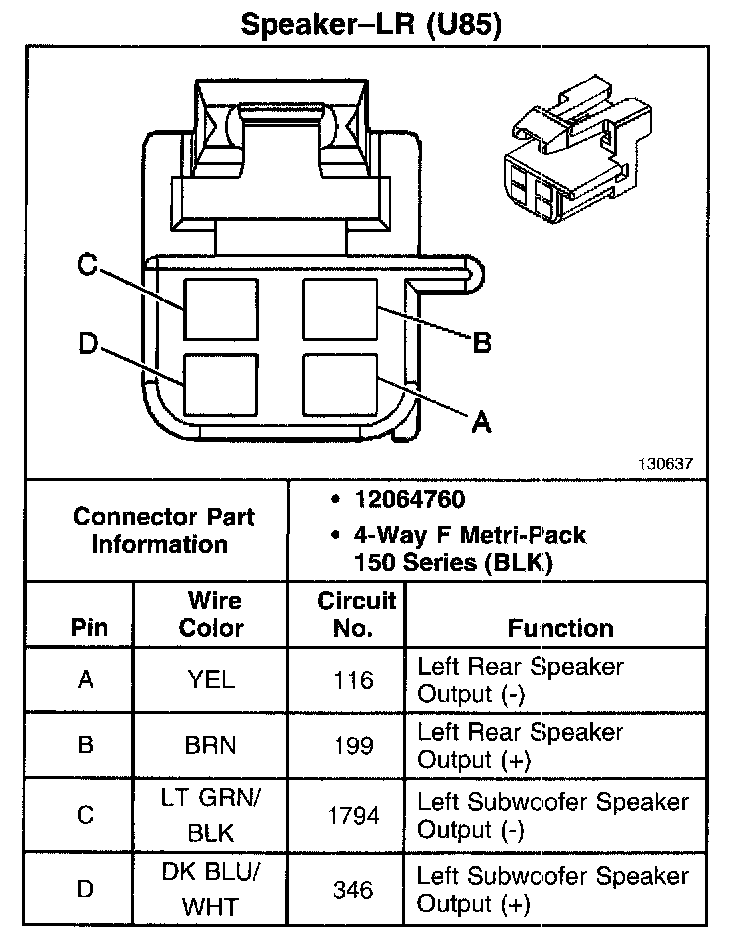

Speaker - LR (U85):

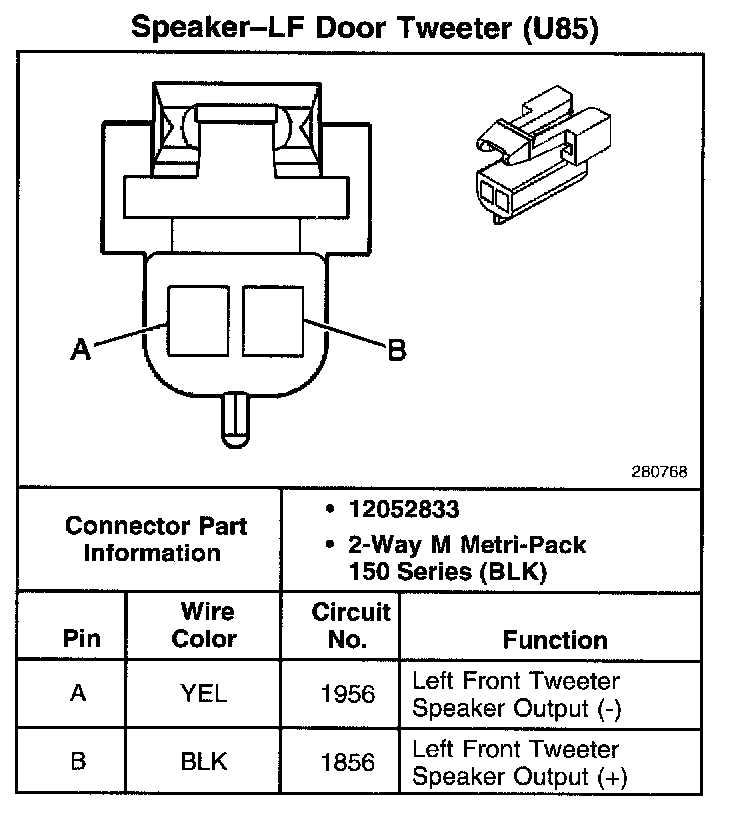

Speaker - LF Door Tweeter (U85):

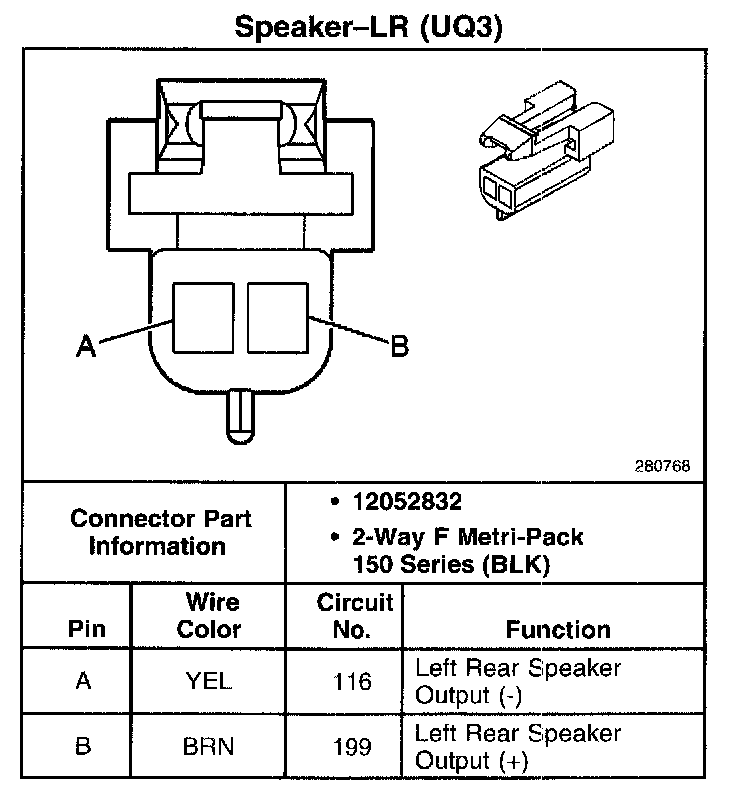

Speaker - LR (UQ3):

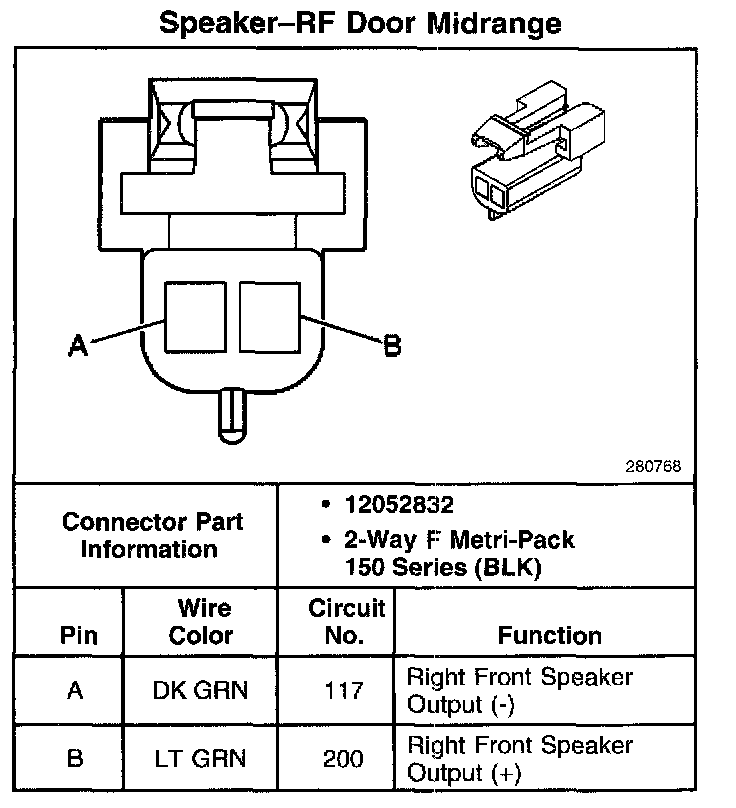

Speaker - RF Door Midrange:

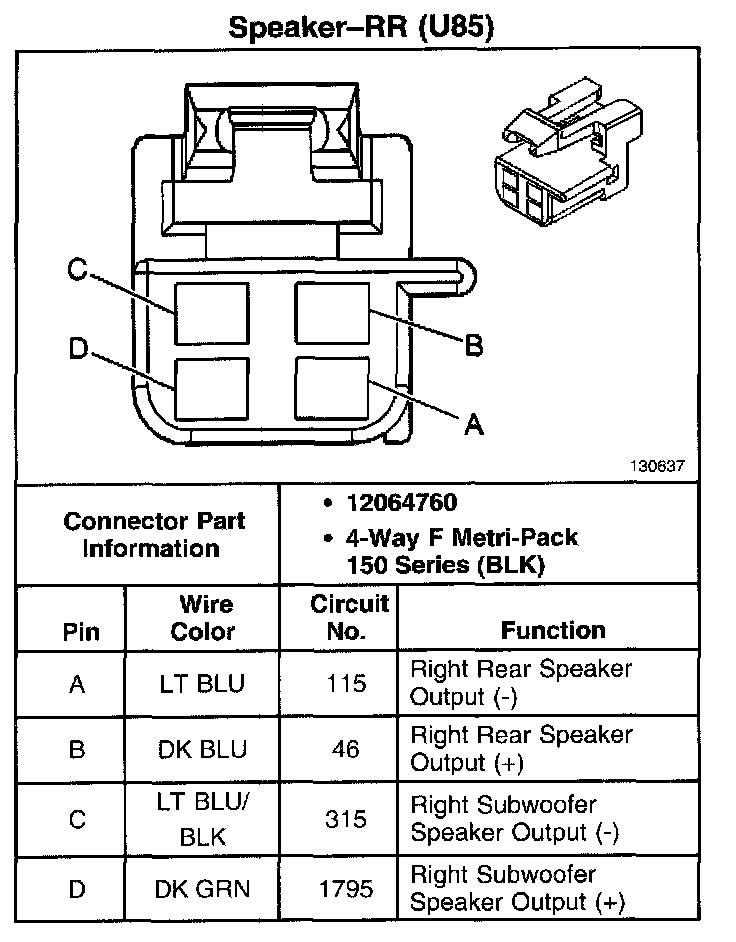

Speaker - RR (U85):

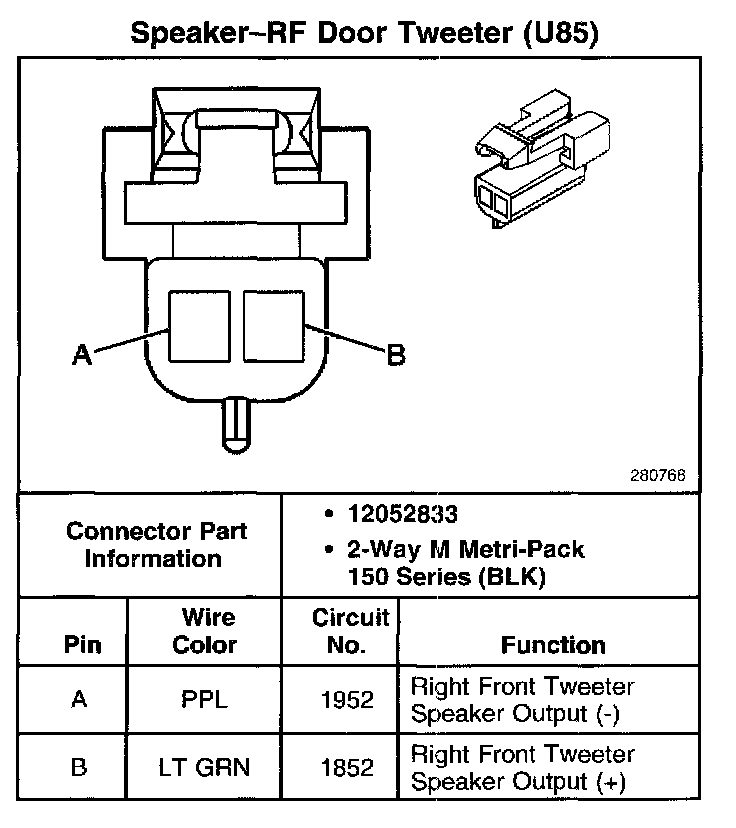

Speaker - RF Door Tweeter (U85):
Speaker - RR (UQ3):
"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID".
RPO Codes
