Aspirator: Service and Repair

ASPIRATOR REPLACEMENT

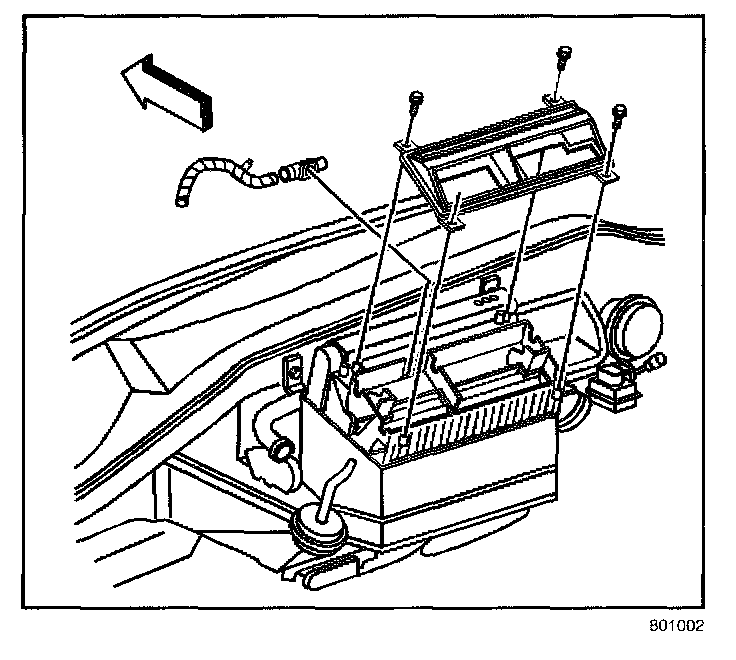

REMOVAL PROCEDURE




1. Remove the left side insulator.
2. Remove the aspirator hose at the muffler.
3. Remove the aspirator mounting screws.
4. Use a flat blade tool to pry the aspirator out of the HVAC case.

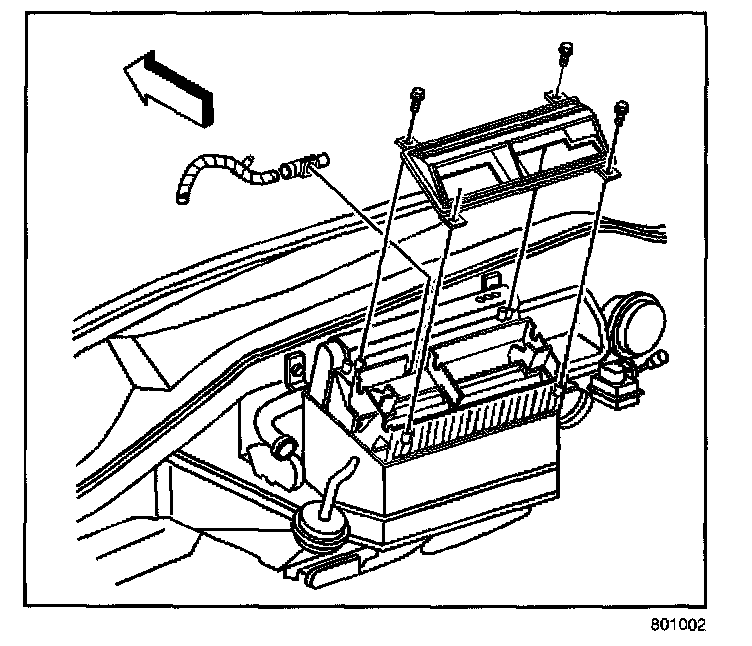

INSTALLATION PROCEDURE




1. Install the aspirator into the case.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the aspirator mounting screws.

Tighten
Tighten the screws to 1.4 N.m (12 lb in).

3. Connect the aspirator hose to the muffler.
4. Install the left side insulator.
