Valve Body, A/T

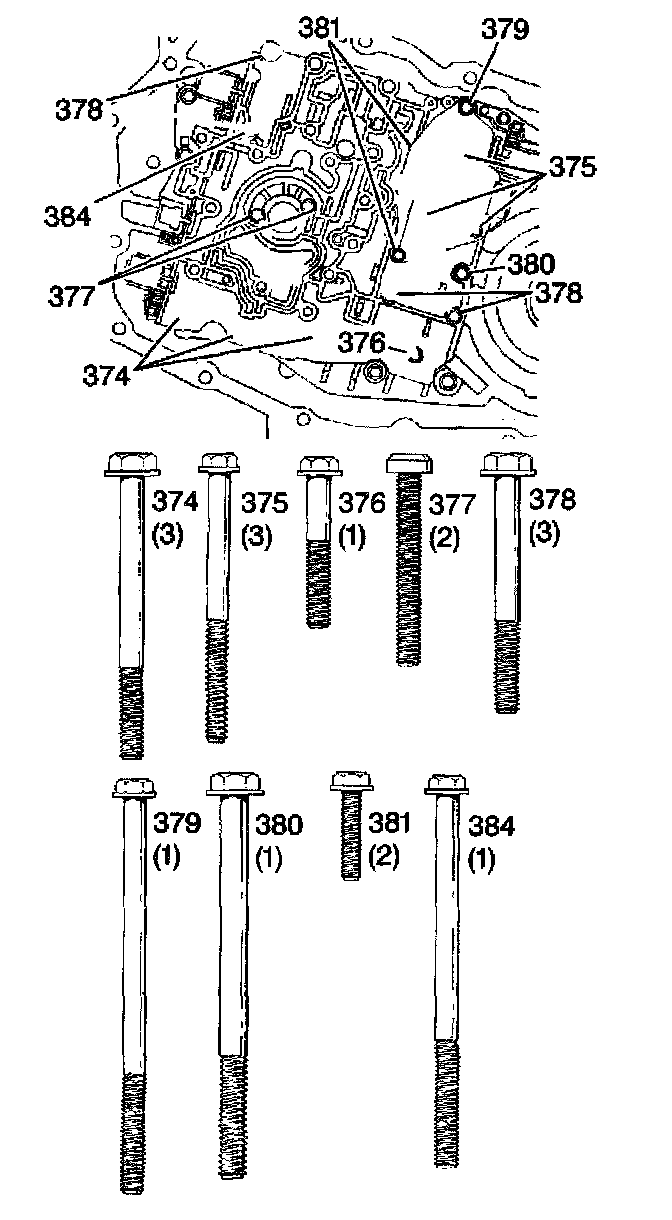

Valve Body Bolts

M6 X 1.0 X 20 bolt (381) 8 Nm (70 inch lbs.)
M6 X 1.0 X 30 bolt (376) 12 Nm (106 inch lbs.)
M6 X 1.0 X 45 bolt (377) 12 Nm (106 inch lbs.)
M6 X 1.0 X 55 bolt (378) 11 Nm (97 inch lbs.)
M6 X 1.0 X 60 bolt (375) 12 Nm (106 inch lbs.)
M6 X 1.0 X 65 bolt (374) 12 Nm (106 inch lbs.)
M6 X 1.0 X 85 bolt (384) 11 Nm (97 inch lbs.)
M6 X 1.0 X 90 bolt (379) 11 Nm (97 inch lbs.)
M8 X 1.0 X 90 bolt (380) 25 Nm (18 ft. lbs.)
