Outlet

Radiator Hose Replacement - Outlet

^ Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure





1. Drain the cooling system.
2. Use the J 38185 in order to reposition the hose clamp from the water pump housing.

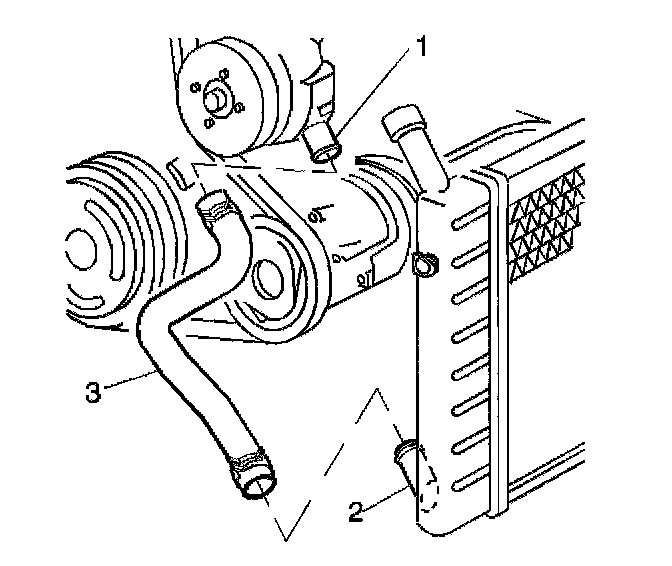

3. Disconnect the outlet hose (3) from the water pump housing (1).
4. Remove the lower radiator air deflector.
5. Use the J 38185 in order to reposition the hose clamp from the radiator.
6. Disconnect the outlet hose (3) from the radiator (2).
7. Remove the outlet hose.

Installation Procedure





1. Align the marks on the radiator hose. Install the outlet hose to the radiator.

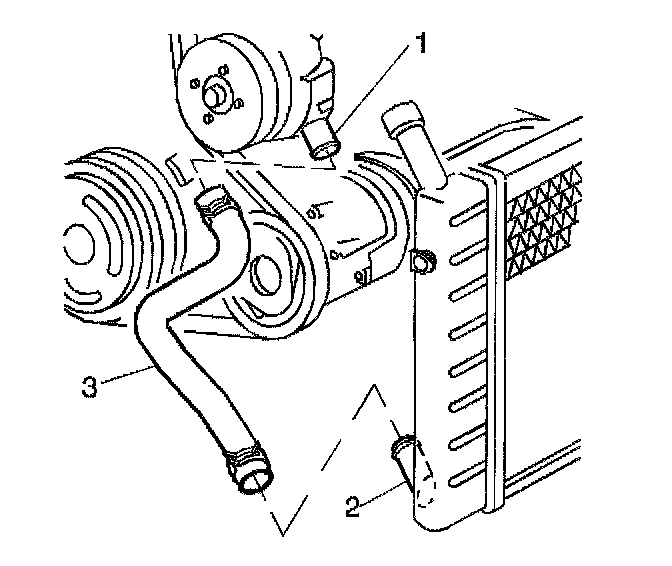

2. Install the outlet hose (3) to the radiator (2).
3. Use the J 38185 in order to reposition the hose clamp to the radiator.
4. Install the lower radiator air deflector.
5. Install the outlet hose (3) to the water pump housing (1).
6. Use the J 38185 in order to reposition the hose clamp to the water pump housing
7. Fill the cooling system.
