69. Engine Block Plug Installation

Engine Block Plug Installation

Notice: Refer to Fastener Notice in Service Precautions.

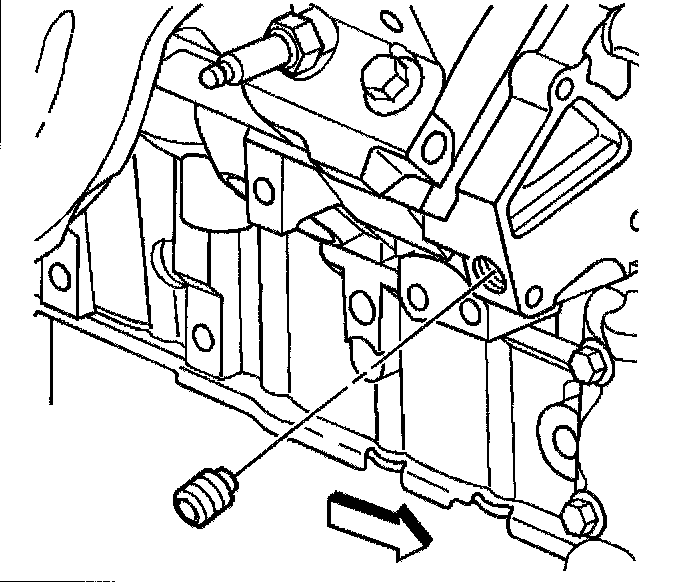

1. Install the threaded oil gallery plugs.
^ Tighten the oil gallery plugs to 30 Nm (22 ft. lbs.).

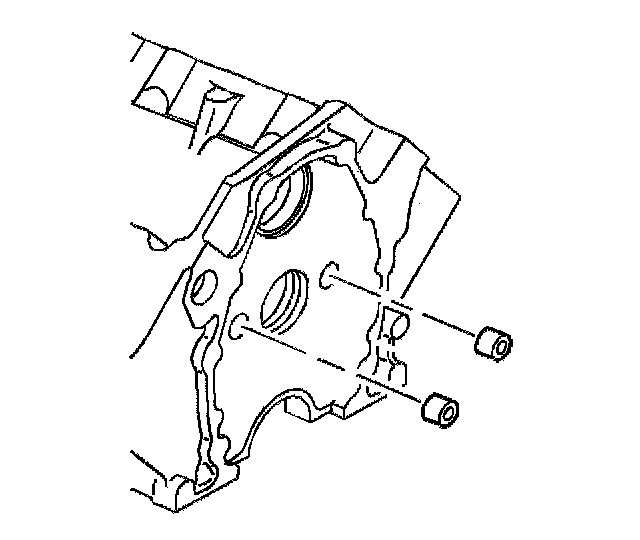

2. Install the remaining oil gallery plugs using GM P/N 12346004 (Canadian P/N 10953480) or the equivalent.





3. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or the equivalent to the threads of the knock sensor.

Notice: Refer to Fastener Notice in Service Precautions.

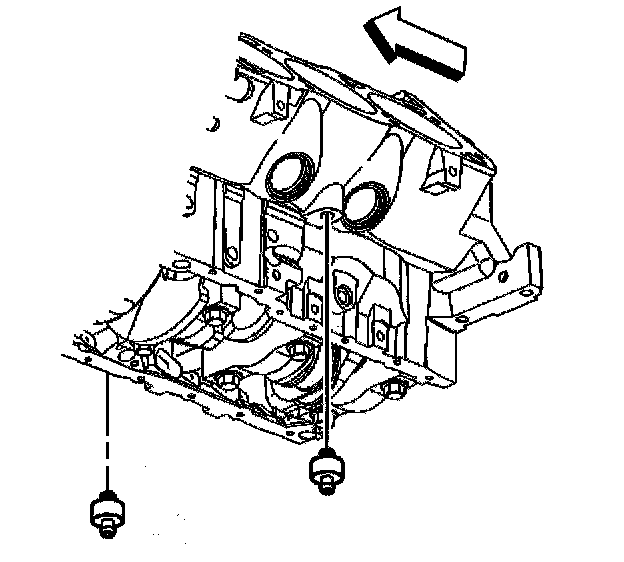

4. Install the knock sensors.
^ Tighten the knock sensors to 18 Nm (13 ft. lbs.).
