Windshield Washer Hose: Service and Repair

HOSE REPLACEMENT - WINDSHIELD WASHER

REMOVAL PROCEDURE
1. Open the hood.
2. Remove the right front fender liner.

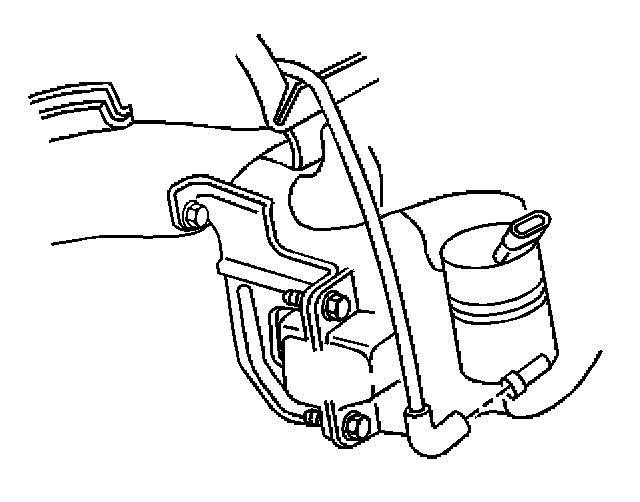

3. Disconnect the washer hose from the washer pump.
4. Lower the Vehicle.

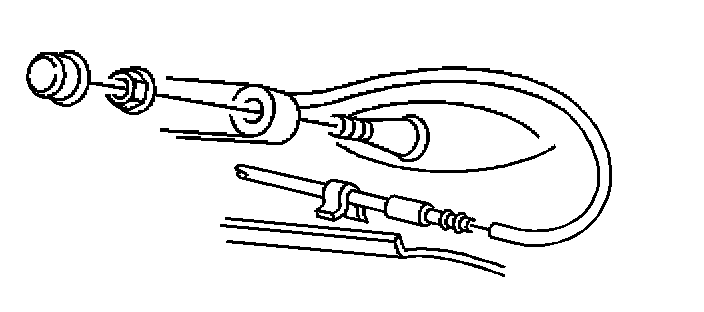

5. Disconnect the washer hose from the wiper arms.

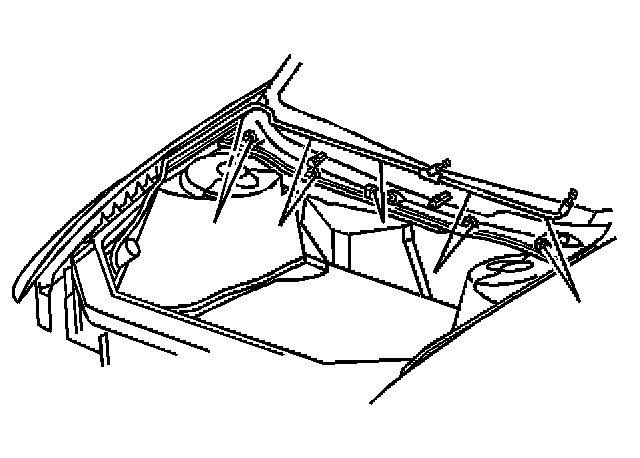

6. Disconnect the washer hose from the air inlet grille panel.
7. Pull the washer hose pump end out alongside the right front inner fender and into the engine compartment.
8. Remove the washer hose from the vehicle.

INSTALLATION PROCEDURE




1. Position the washer hose to the vehicle.
2. Route the washer hose pump end down alongside the right front inner fender and into the right front inner fender area.
3. Connect the washer hose to the air inlet grille panel.

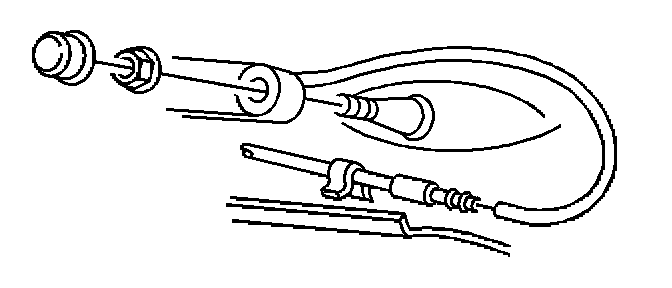

4. Connect the washer hose to the wiper arms.




5. Raise the vehicle.

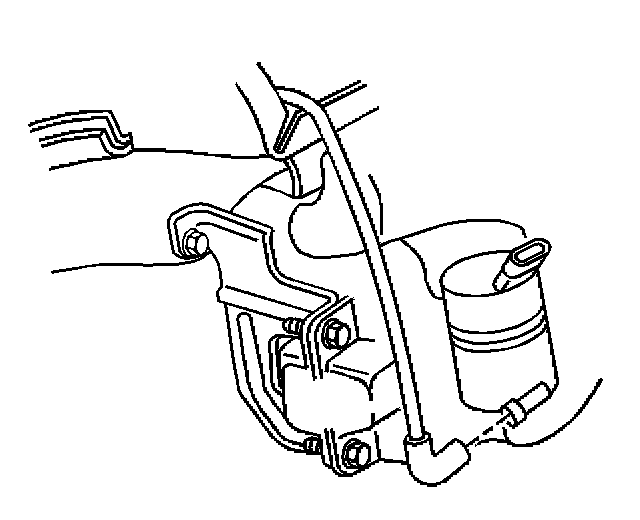

6. Connect the Washer hose to the washer pump.
7. Install the right front fender liner.
8. Close the hood.
