Cabin Temperature Sensor / Switch: Service and Repair

INSIDE AIR TEMPERATURE SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the left IP accessory trim plate.

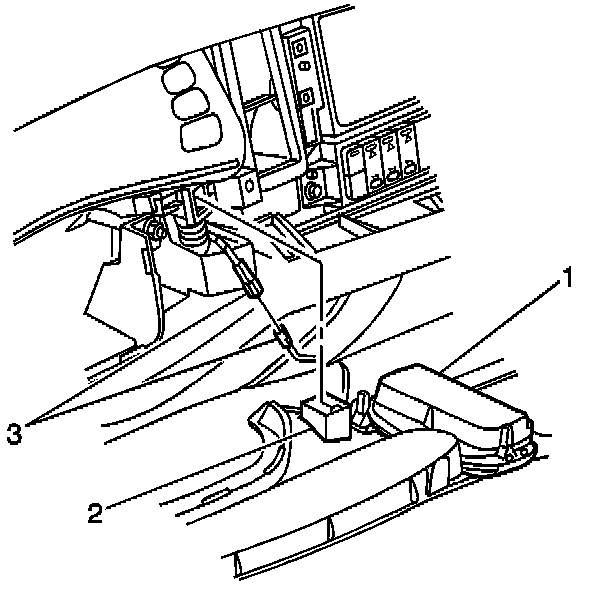

2. Disconnect the electrical connector (3) from the inside air temperature sensor (2).




3. Remove the inside air temperature sensor from the IP trim plate.

INSTALLATION PROCEDURE




1. Install the inside air temperature sensor to the IP trim plate.




2. Connect the electrical connector (3) to the inside air temperature sensor (2).
3. Install the left IP accessory trim plate.
