Locks: Service and Repair

Door Locking Rod/Bellcrank Replacement - Rear

Removal Procedure

1. Remove the rear door trim panel.

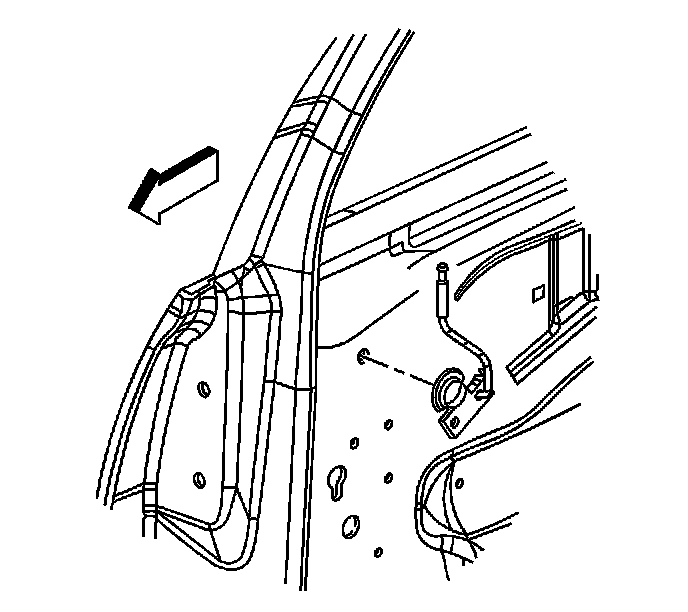

2. Remove the bellcrank from the door by releasing the two inner retaining clips.
3. Remove both door rods from the bellcrank.

Installation Procedure

1. Install both door rods to the new bellcrank.
2. Install the bellcrank to the door by snapping it in place.
3. Inspect the door for proper operation.
4. Install the rear door trim panel.
