Rear Body Mount Replacement

Rear Body Mount Replacement

Removal Procedure
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Support the exhaust and the rear of the support assembly. Use a block of wood at least 7 inches long.
3. Remove the exhaust hangers.
4. Remove the rear support assembly mounting bolts and lower the rear support assembly and exhaust together.

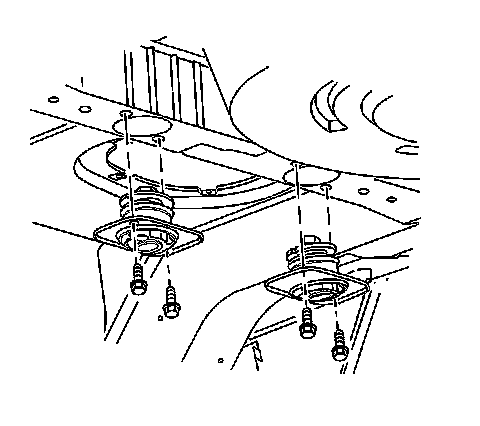

5. Remove the rear body mount mounting bolts.
6. Remove the rear body mount.

Installation Procedure





1. Notice: Refer to Fastener Notice in Service Precautions.

Install the rear body mount and the two bolts ensuring that OUT is toward the outboard of the vehicle.
2. Install the rear body mount mounting bolts.
^ Tighten the rear body mount mounting bolts to 51 Nm (38 ft. lbs.).
3. Raise and support the exhaust system and rear support assembly.
4. Install the rear support assembly mounting bolts.
^ Tighten the rear support assembly mounting bolt to 181 Nm (133 ft. lbs.).
5. Install the exhaust hangers
6. Install the tire and the wheel.
7. Lower the vehicle.
