EGR Tube: Service and Repair

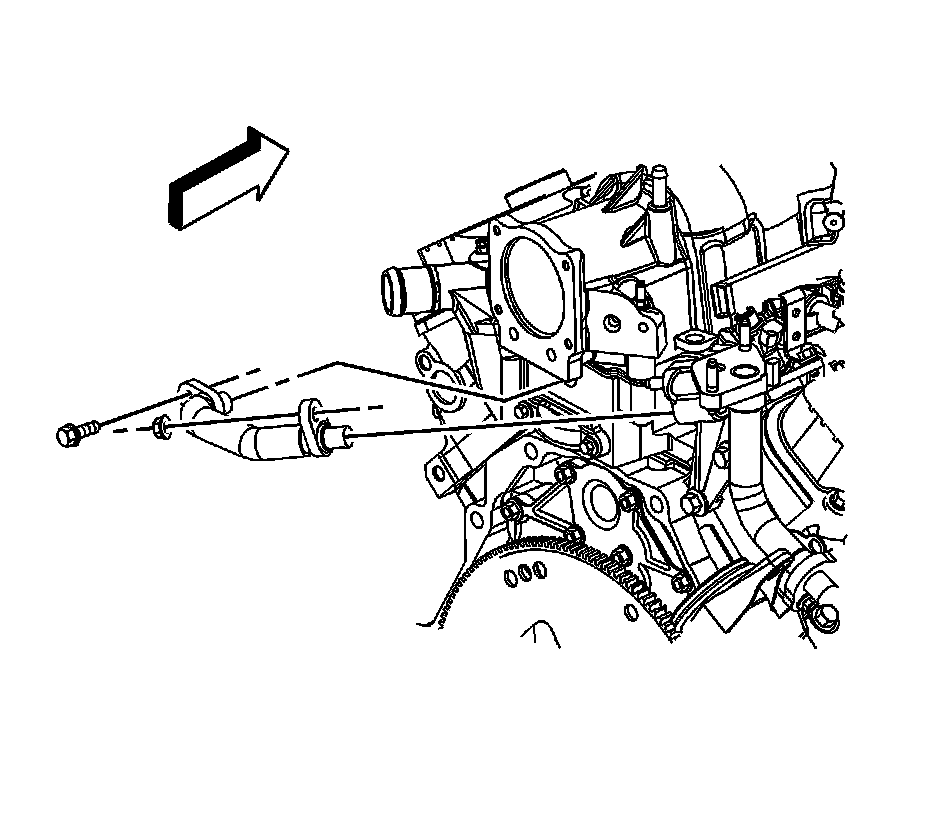

EXHAUST GAS RECIRCULATION (EGR) OUTLET PIPE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the air cleaner outlet duct.
2. Remove the exhaust gas recirculation (EGR) valve outlet pipe bolt from the intake manifold.
3. Remove the EGR valve outlet pipe nut from the EGR valve adapter.
4. Remove the EGR valve outlet pipe.

INSTALLATION PROCEDURE




1. Install the EGR valve outlet pipe.
2. Install the EGR valve outlet pipe bolt to the intake manifold.

NOTE: Refer to Fastener Notice.

Tighten the bolt to 25 N.m (18 lb ft).

3. Install the EGR valve outlet pipe nut to the EGR valve adapter.

Tighten the nut to 25 N.m (18 lb ft).

4. Install the air cleaner outlet duct.
