Vehicle Jacking

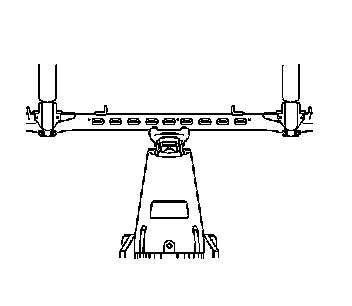

LIFTING THE VEHICLE WITH A FLOOR JACKFLOOR JACK AT THE FRONT OF THE VEHICLEWhen lifting front the vehicle with a floor jack, place the floor jack lift pad at the center of the front frame rail.

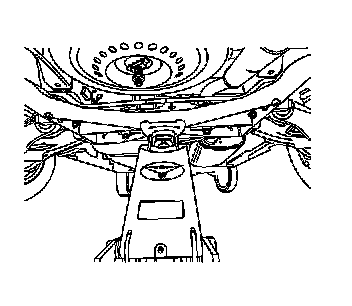

FLOOR JACK AT THE REAR OF THE VEHICLE (ALL WHEEL DRIVE)Lift the rear of the vehicle by placing the floor jack lift pad at the center of the rear suspension.
FLOOR JACK AT THE REAR OF THE VEHICLE (FRONT WHEEL DRIVE)
