DTC B0184 or B0189

Circuit Description

The sunload sensor is a 2-wire photo diode. The vehicle uses left and right sunload sensors. The two sensors are integrated into the sunload sensor assembly along with the ambient light sensor. Low reference and signal circuits enable the sensor to operate. As the sunload increases, the sensor signal decreases. The sensor operates within an intensity range between completely dark and bright. The sensor signal varies between 0-5 volts. The HVAC control module converts the signal to a range between 0-255 counts. The sunload sensor provides the HVAC control module a measurement of the amount of light shining on the vehicle. Bright, or high intensity, light causes the vehicles inside temperature to increase. The HVAC system compensates for the increased temperature by diverting additional cool air into the vehicle.

* Sunload sensor 1 refers to the left sunload sensor
* Sunload sensor 2 refers to the right sunload sensor

DTC Descriptors

This diagnostic procedure supports the following DTCs:

* DTC B0184 Sunload Sensor 1 Circuit Performance
* DTC B0189 Sunload Sensor 2 Circuit Performance

Conditions for Running the DTC

The ignition is turned ON.

Conditions for Setting the DTC

The HVAC control module detects the signal circuit is less than 0.09 volt (5 counts) or more than 4.90 volts (250 counts).

Action Taken When the DTC Sets

* If the DTC sets due to a low voltage condition, the HVAC control module will operate the system as if a minimum sunload condition exists.
* If the DTC sets due to a high voltage condition, the HVAC control module will operate the system as if a minimum sunload condition exists.

Conditions for Clearing the DTC

* The DTC will become history if the HVAC control module no longer detects a failure.
* The history DTC will clear after 50 fault free ignition cycles.
* The DTC can be cleared with a scan tool.

Test Description

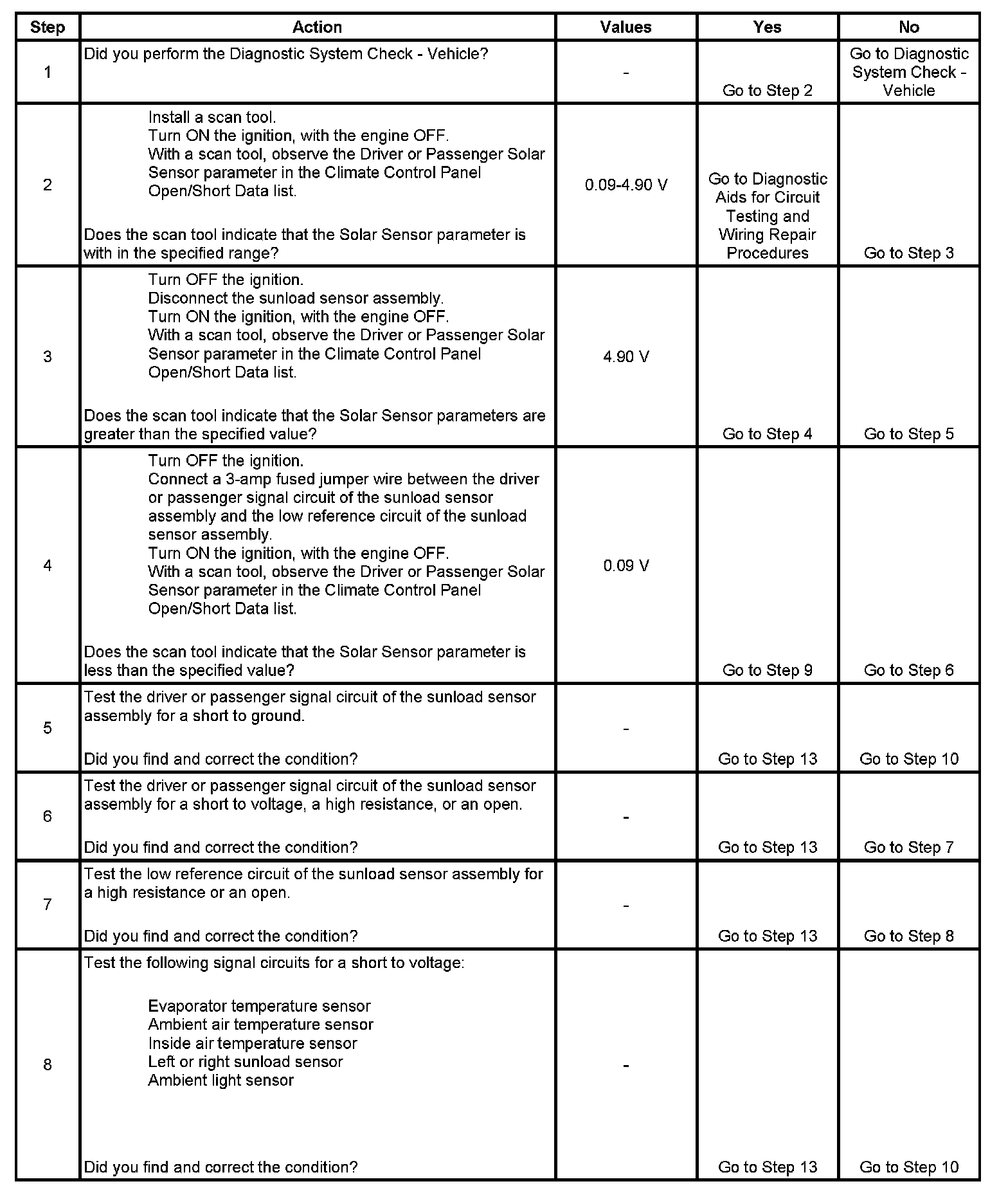

Step 1 - Step 8:

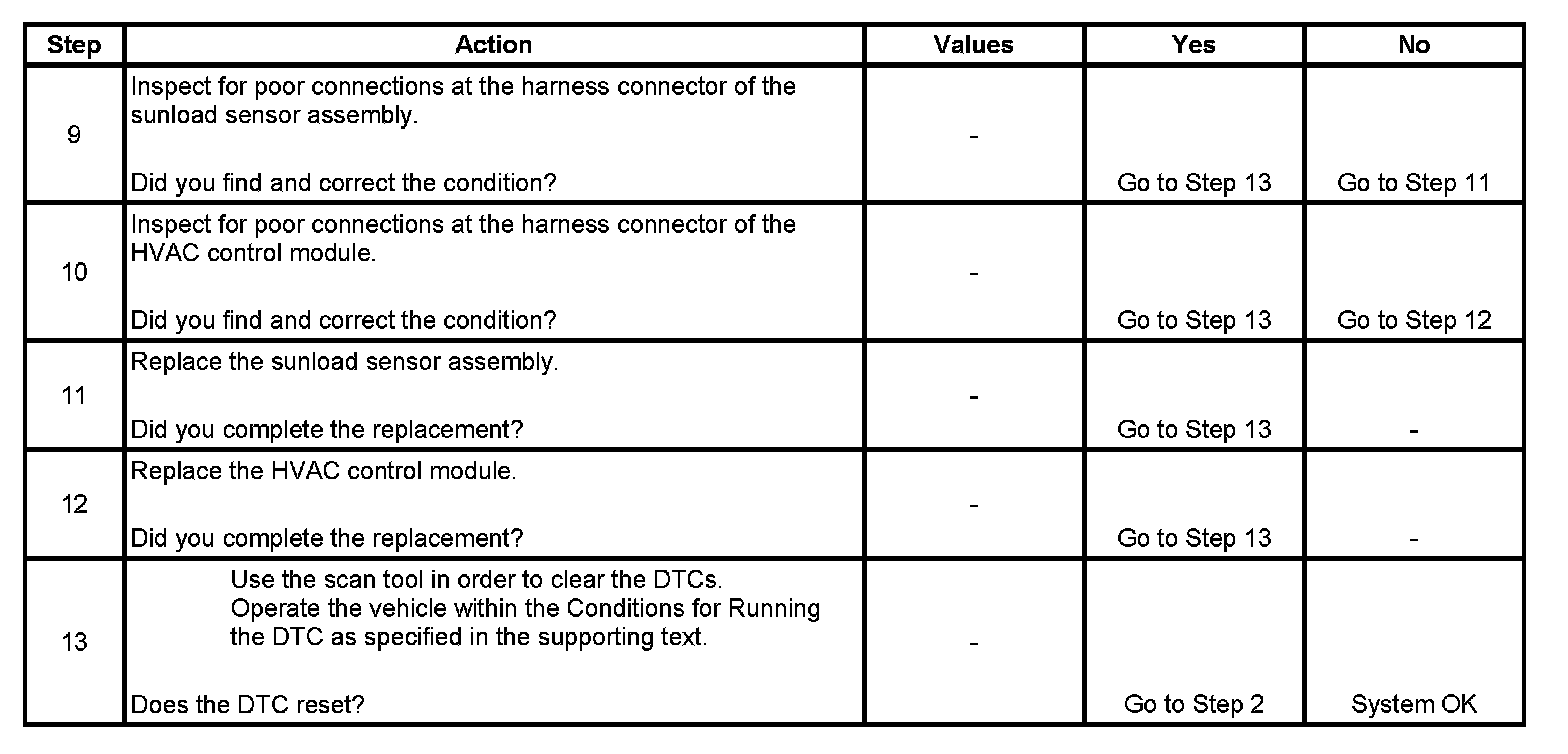

Step 9 - Step 13:

The numbers below refer to the step numbers on the diagnostic table.
3. Tests for the proper operation of the circuit in the high voltage range.
4. Tests for the proper operation of the circuit in the low voltage range. If the fuse in the jumper opens when you perform this test, the signal circuit is shorted to voltage.
