Rearview Mirror Replacement

Rearview Mirror Replacement

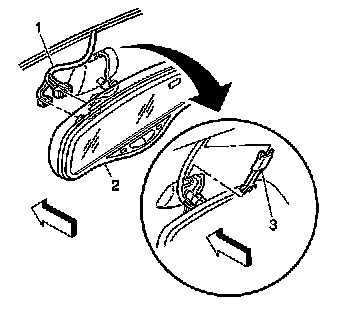

Removal Procedure




1. Disconnect the electrical connector (3) from the back of the mirror.
2. Remove the wire harness cover.
3. Adjust the mirror to the full upward position.




4. Loosen the screw at the base in order to remove the mirror from the button.
5. Slide the mirror in an upward motion in order to remove.

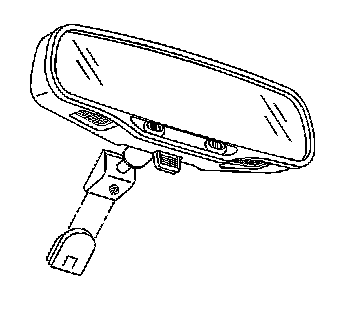

Installation Procedure




1. Position the center bottom of the mirror mount against the windshield at the top of the support button.
2. Slide the base of the mirror onto the button.

Notice: refer to Fastener Notice.

3. Make sure the mirror is firmly seated on the windshield button by pushing down on the base of the mirror.

Tighten the screw (3) to 1.8 N.m (16 lb in) in order to secure the mirror base to the button.




4. Connect the electrical connector (3) to the back of the mirror.
5. Install the wire harness cover.
6. Reposition the mirror.
