Input and 3rd Clutch Pawl Disassemble



Input and 3rd Clutch Pawl Disassemble





Important: The third and input clutch pawl assemblies (727, 728) are serviced as assemblies, do not disassemble.

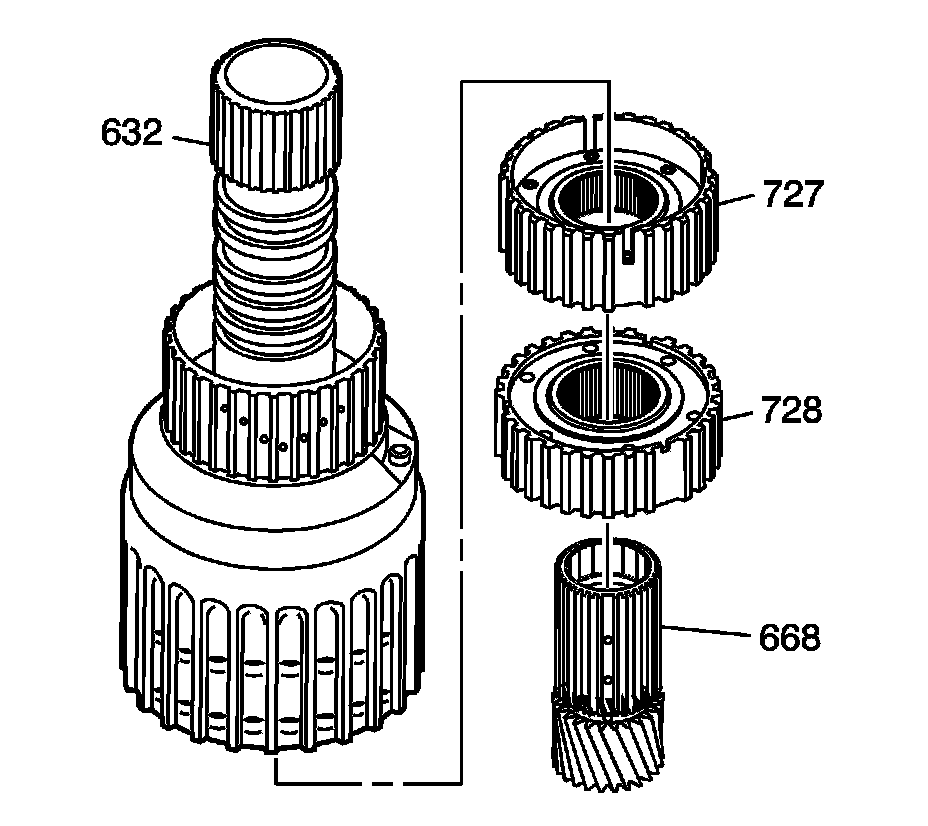

Disassemble the third and input clutch pawl assemblies (727, 728) and input sungear shaft (668) from the input clutch housing assembly (632).
