Front Side Door Conduit Replacement

Front Side Door Conduit Replacement

Removal Procedure





1. Open the front door.

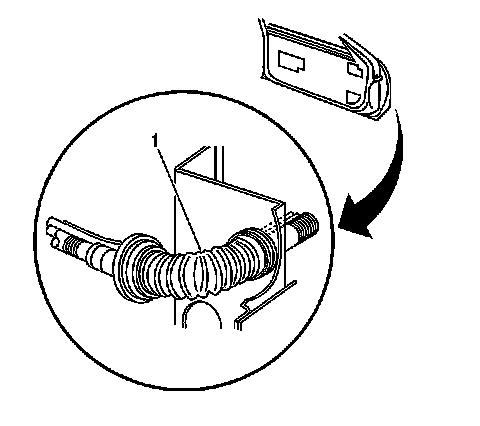

2. Remove the rubber conduit (1) from where it attaches at the front pillar.
3. Carefully pull the wire harness out from the front pillar to expose the harness connector.
4. Disconnect the door wiring harness electrical connector.
5. Remove the rubber conduit from the door and remove it from the electrical harness.



Installation Procedure





1. Thread the electrical harness through the rubber conduit (1).
2. Install the rubber conduit into the door.
3. Connect the electrical connector.
4. Install the rubber conduit to the front pillar.
5. Close the front door
