Brake Fluid Pressure Sensor/Switch
Brake Fluid Pressure Sensor/Switch

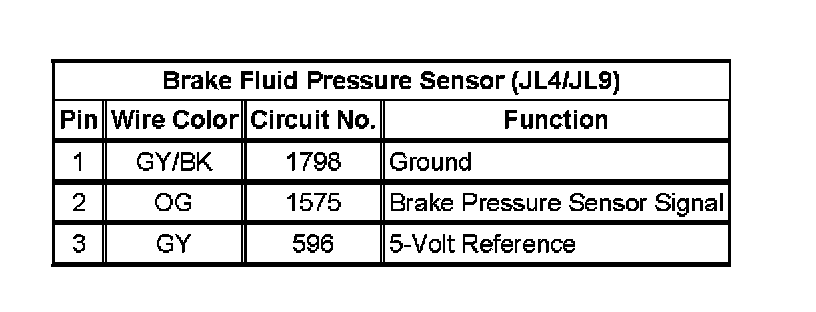

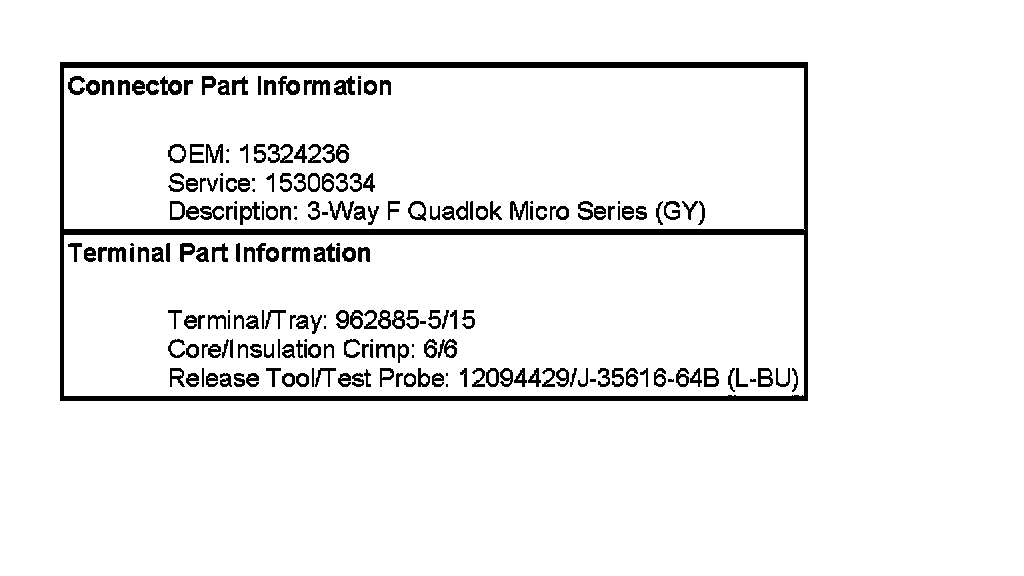

Brake Fluid Pressure Sensor (JL4/JL9)
Brake Fluid Pressure Sensor (JL4/JL9):
