Discharge Air Temperature Sensor / Switch, HVAC

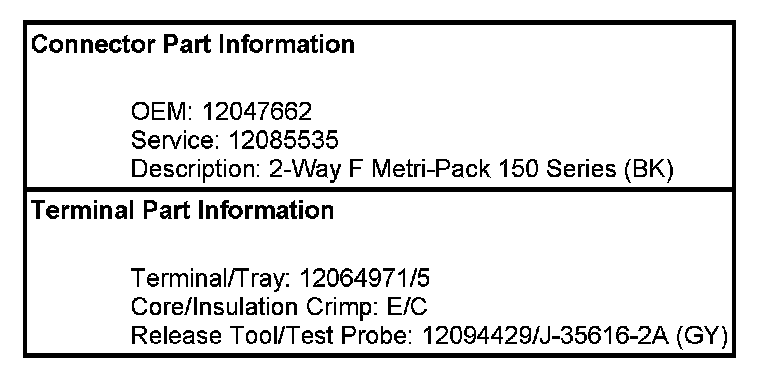

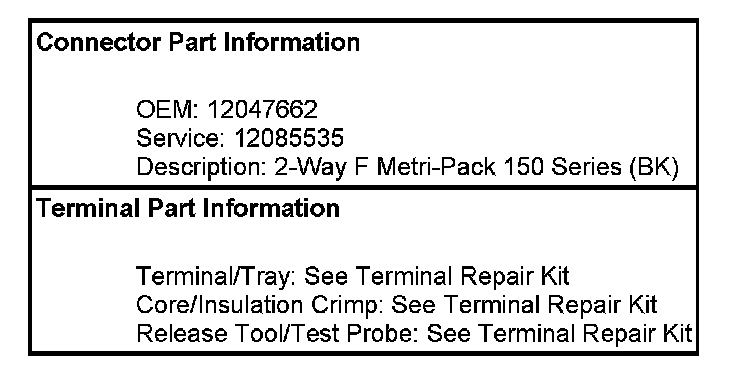

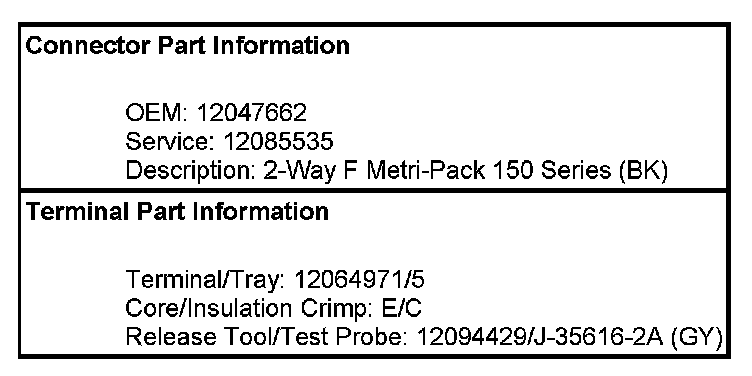

HVAC Connector End Views

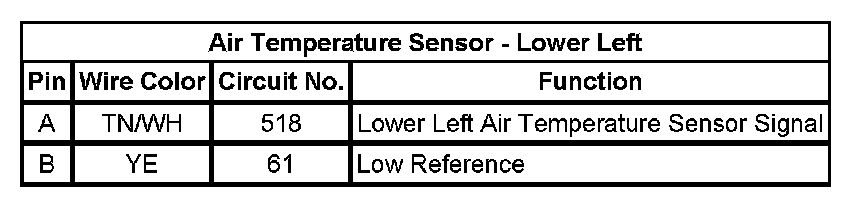

Air Temperature Sensor - Lower Left

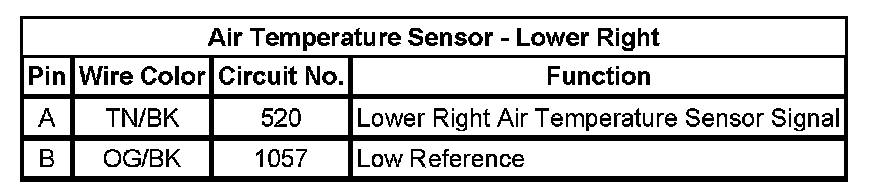

Air Temperature Sensor - Lower Right

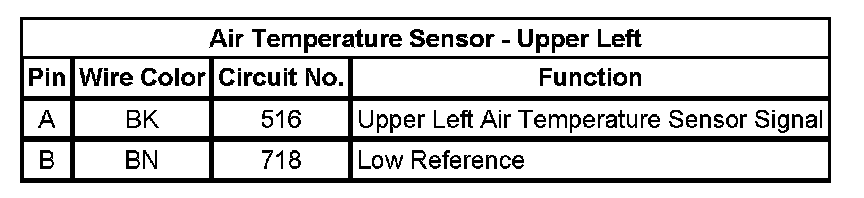

Air Temperature Sensor - Upper Left

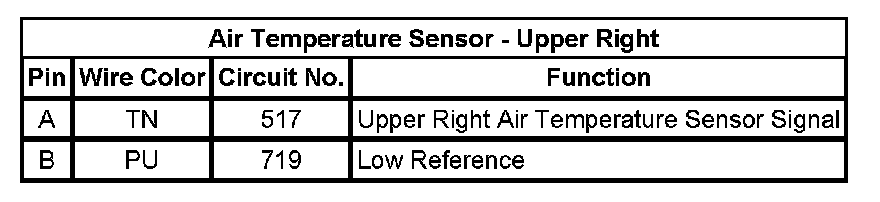

Air Temperature Sensor - Upper Right
