Dome Lamp
Dome Lamp

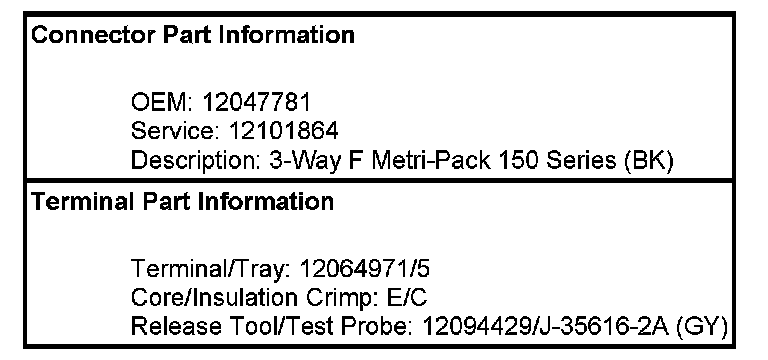

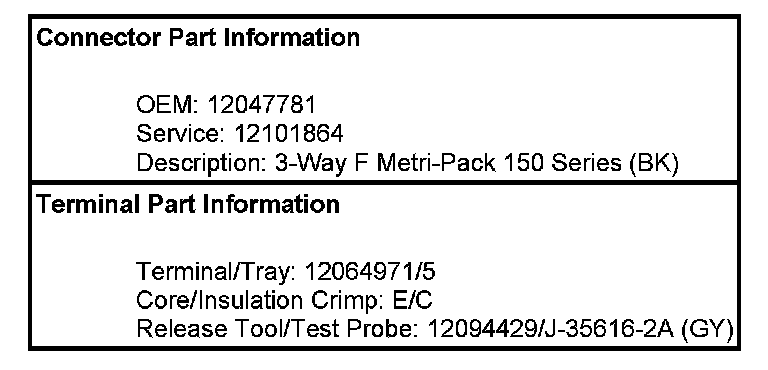

Lighting Systems Connector End Views

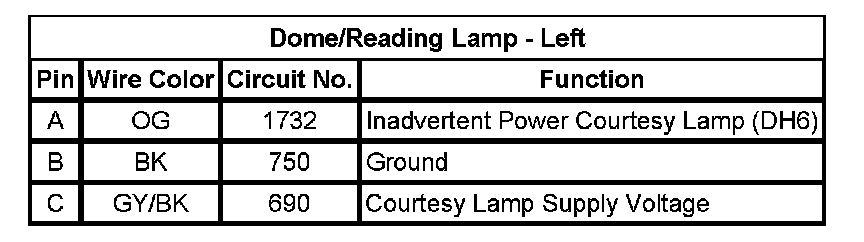

Dome/Reading Lamp - Left

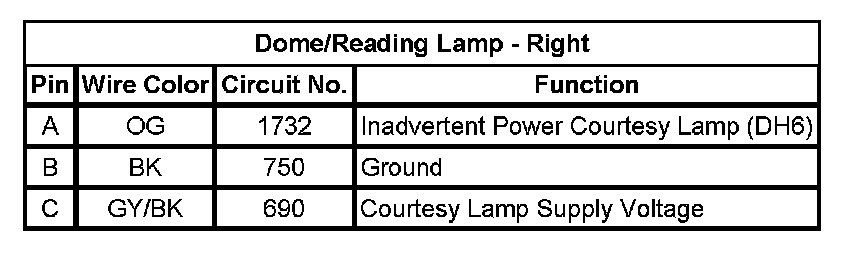

Dome/Reading Lamp - Right
