Marker Lamp

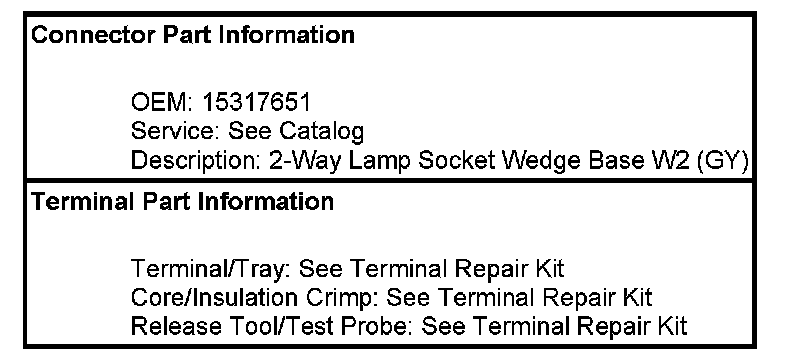

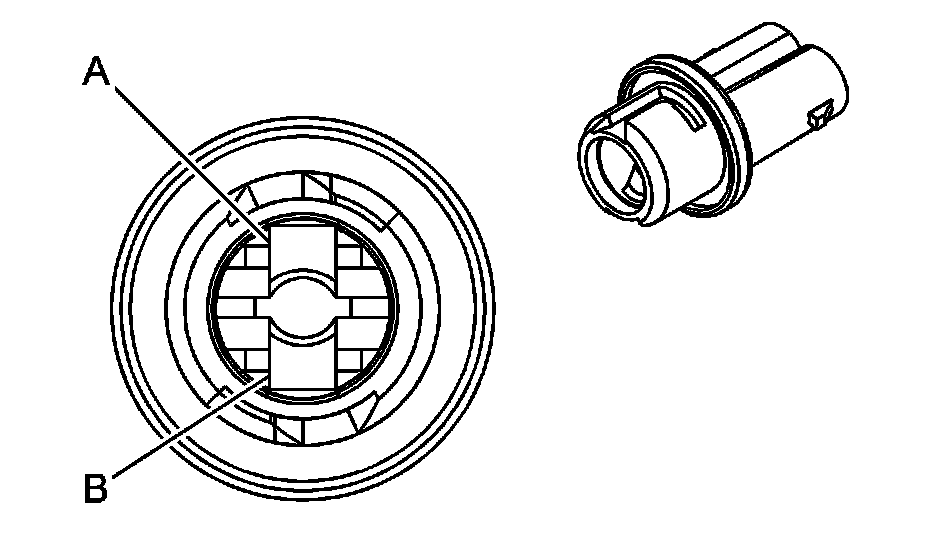

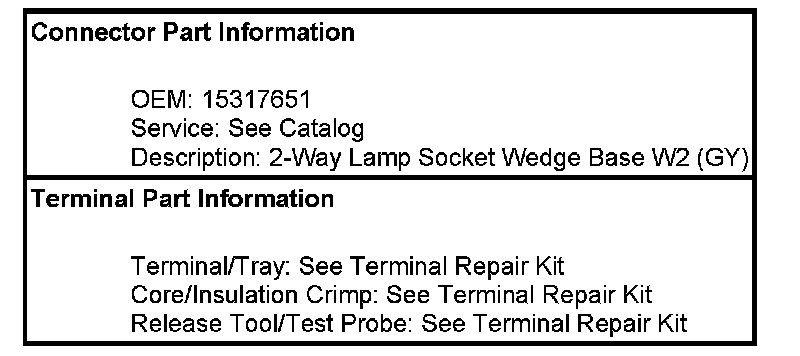

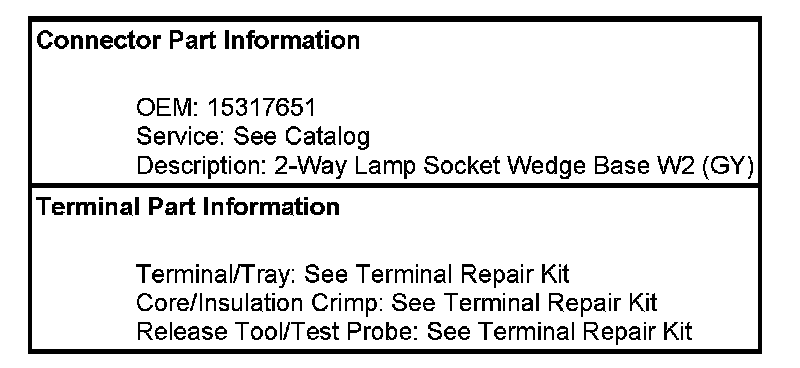

Lighting Systems Connector End Views

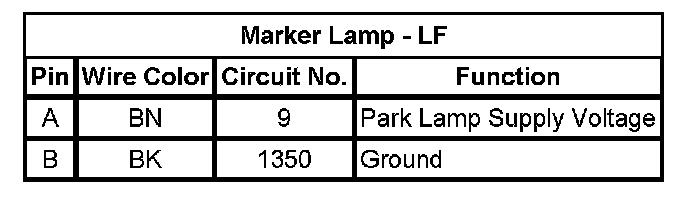

Marker Lamp - LF

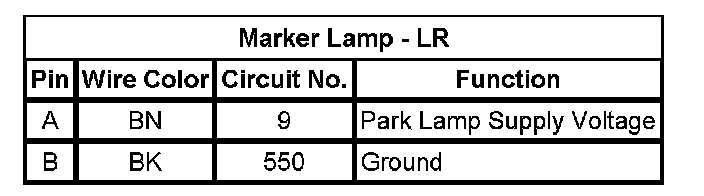

Marker Lamp - LR

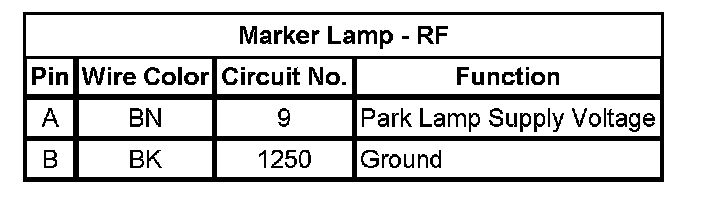

Marker Lamp - RF

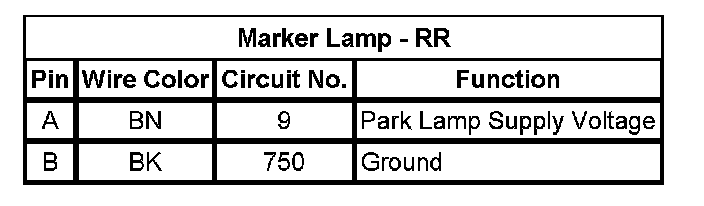

Marker Lamp - RR
