Power Window Motor



Window Systems Connector End Views

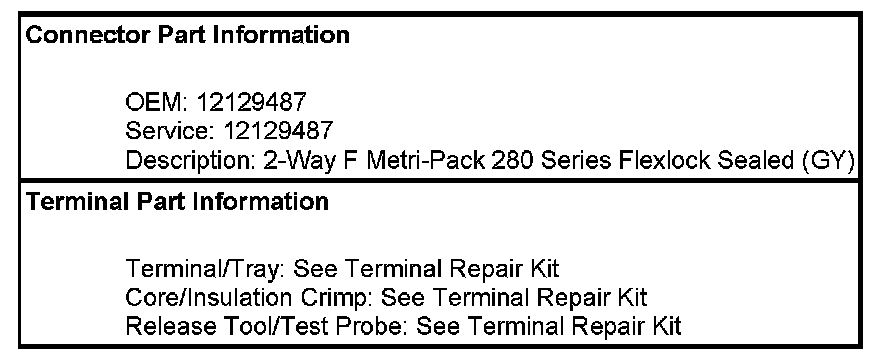

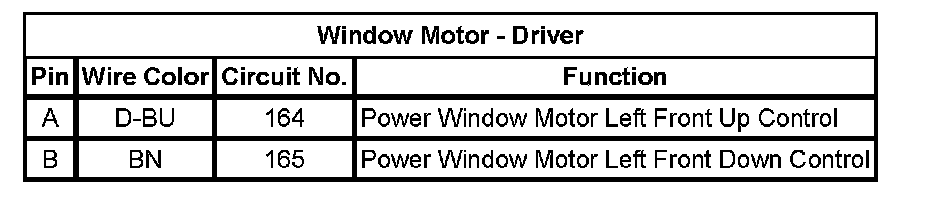

Window Motor - Driver

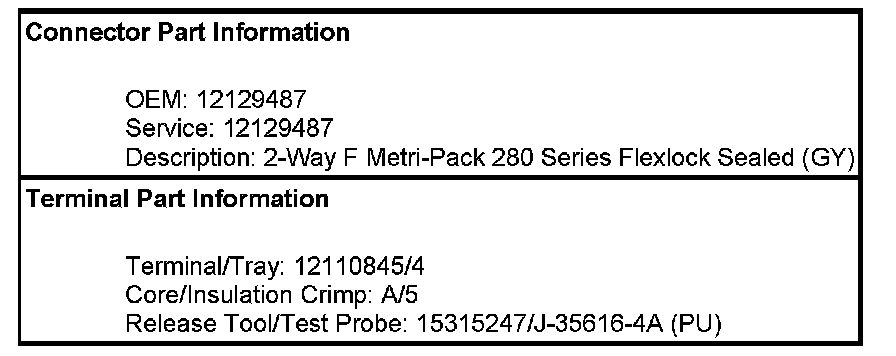

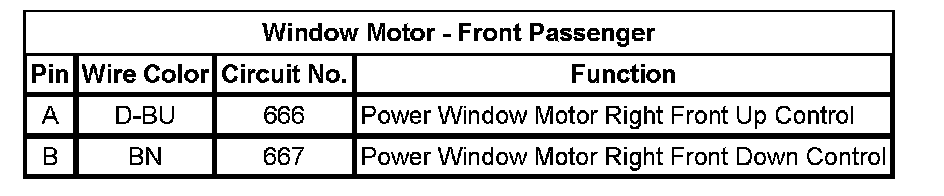

Window Motor - Front Passenger

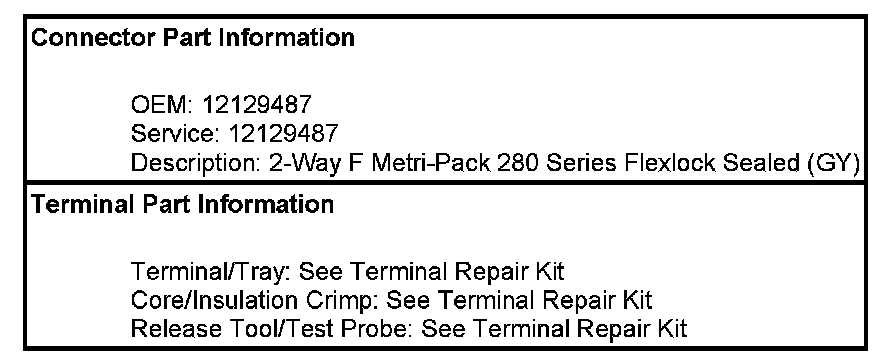

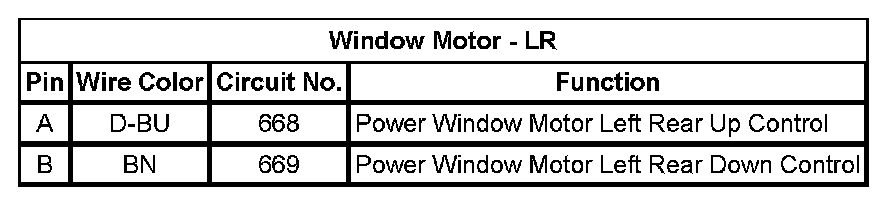

Window Motor - LR

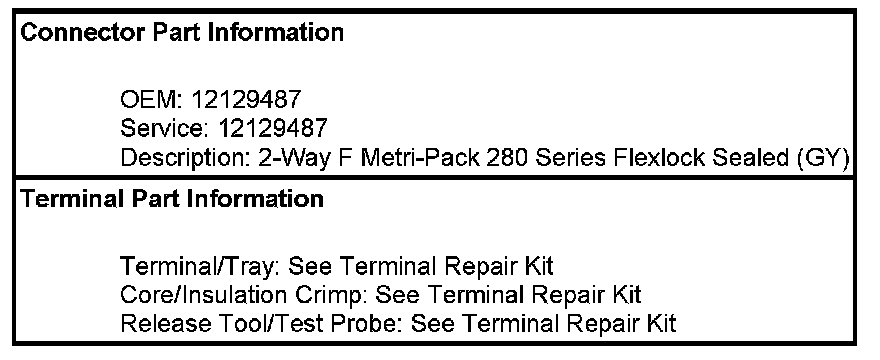

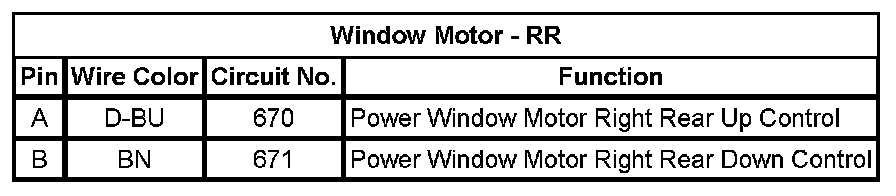

Window Motor - RR
