Turn Signal Switch



Lighting Systems Connector End Views

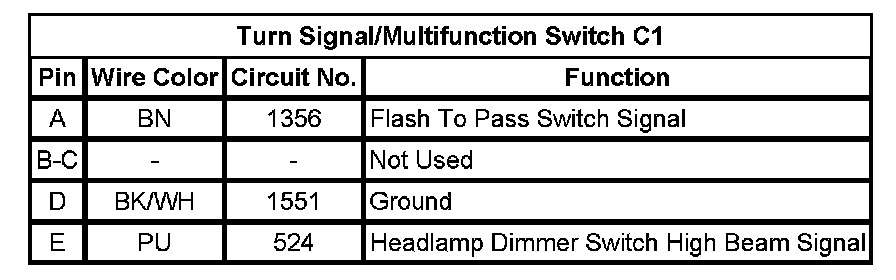

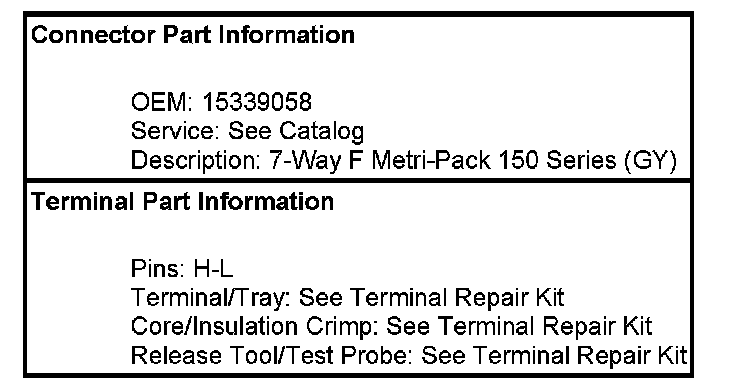

Turn Signal/Multifunction Switch C1














Turn Signal/Multifunction Switch C2














Turn Signal/Multifunction Switch C3
