Transmission Control Systems



Automatic Transmission Controls Schematics

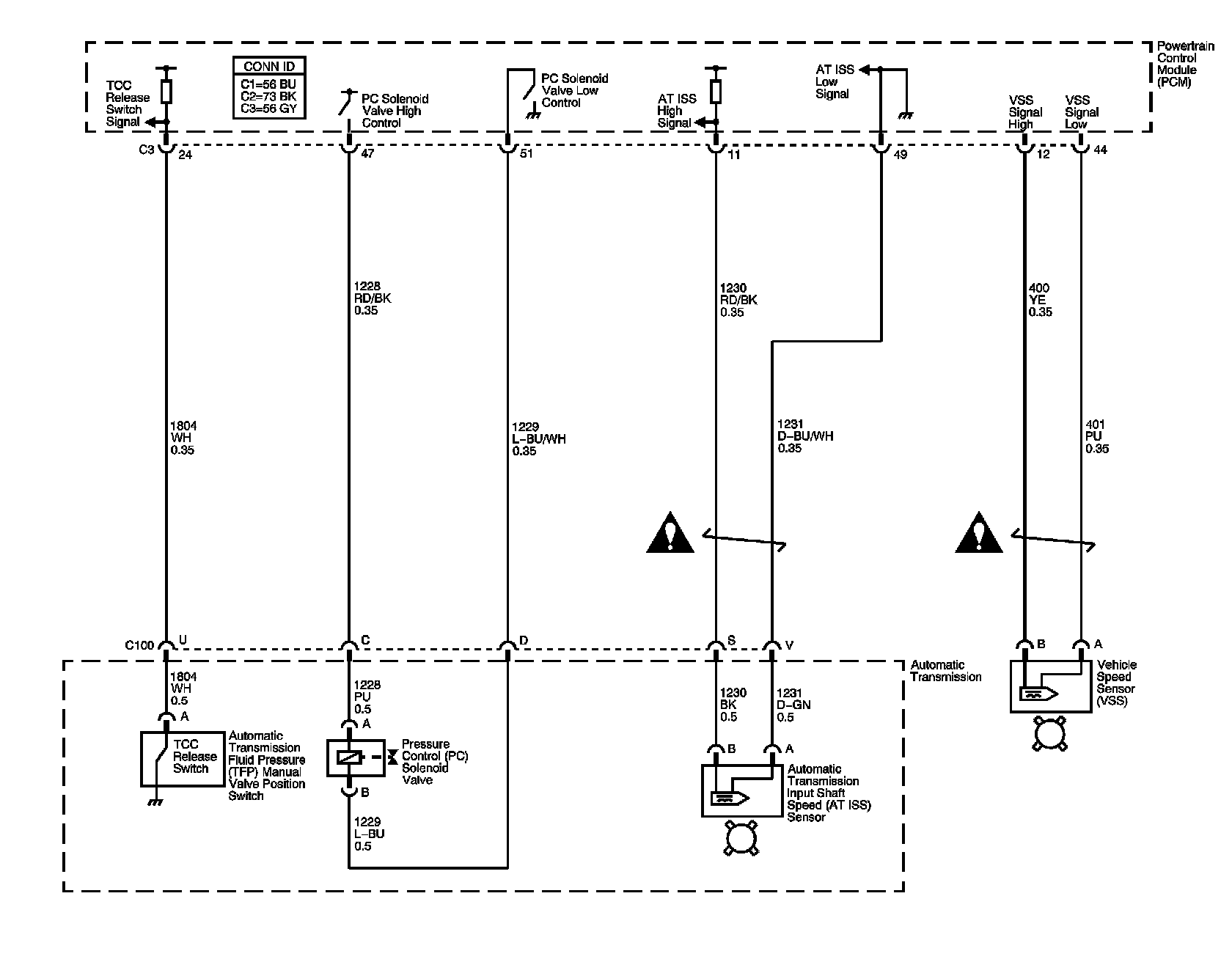

Automatic Transmission Controls Schematics 1:




Automatic Transmission Controls Schematics 2:




Automatic Transmission Controls Schematics 3:




Automatic Transmission Controls Schematics 4:




Automatic Transmission Controls Schematics 5:




Automatic Transmission Controls Schematics 6:




Automatic Transmission Controls Schematics 7:





Locations: The locations for the connectors, Grounds, Splices and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
