28. Crankshaft Rear Oil Seal and Housing Removal

Crankshaft Rear Oil Seal and Housing Removal (Second Design)

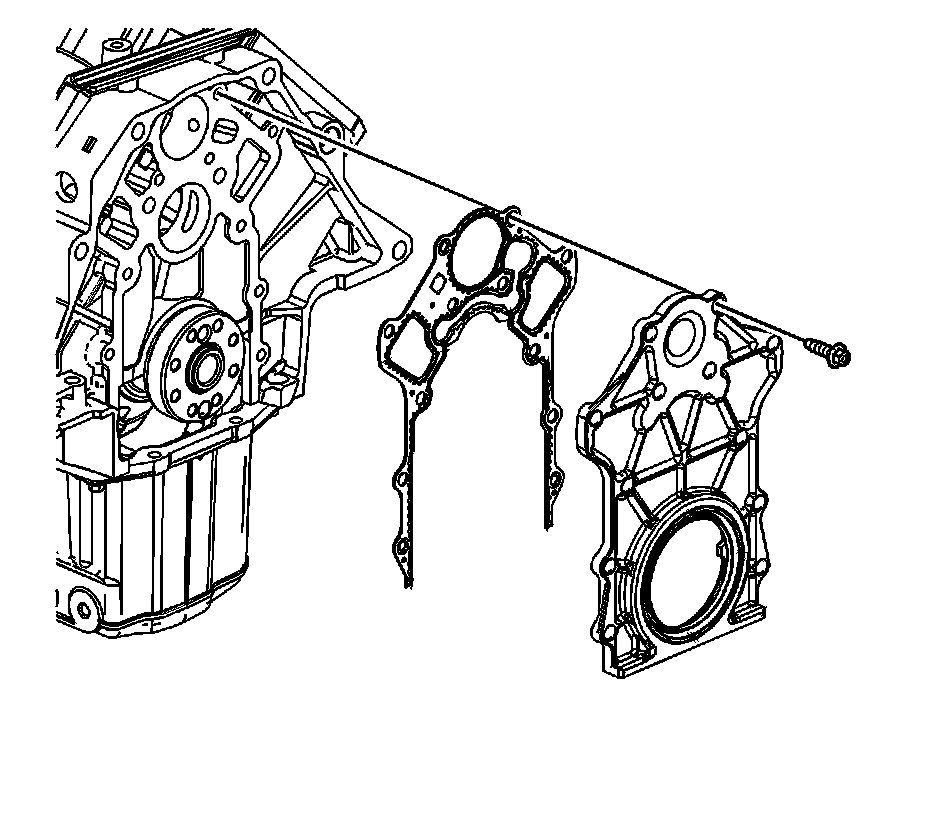

1. Remove the crankshaft rear oil seal housing bolts.
2. Remove the crankshaft rear oil seal housing and gasket.




3. Place the crankshaft rear oil seal housing face down on a clean surface and support with blocks of wood.
4. Use a suitable driving tool and hammer and lightly tap around the outer edge of the seal to remove it.
