HVAC - Manual
HVAC Component ViewsFront A/C Components1 - Radiator
2 - A/C Compressor Clutch
3 - A/C Refrigerant Pressure Sensor

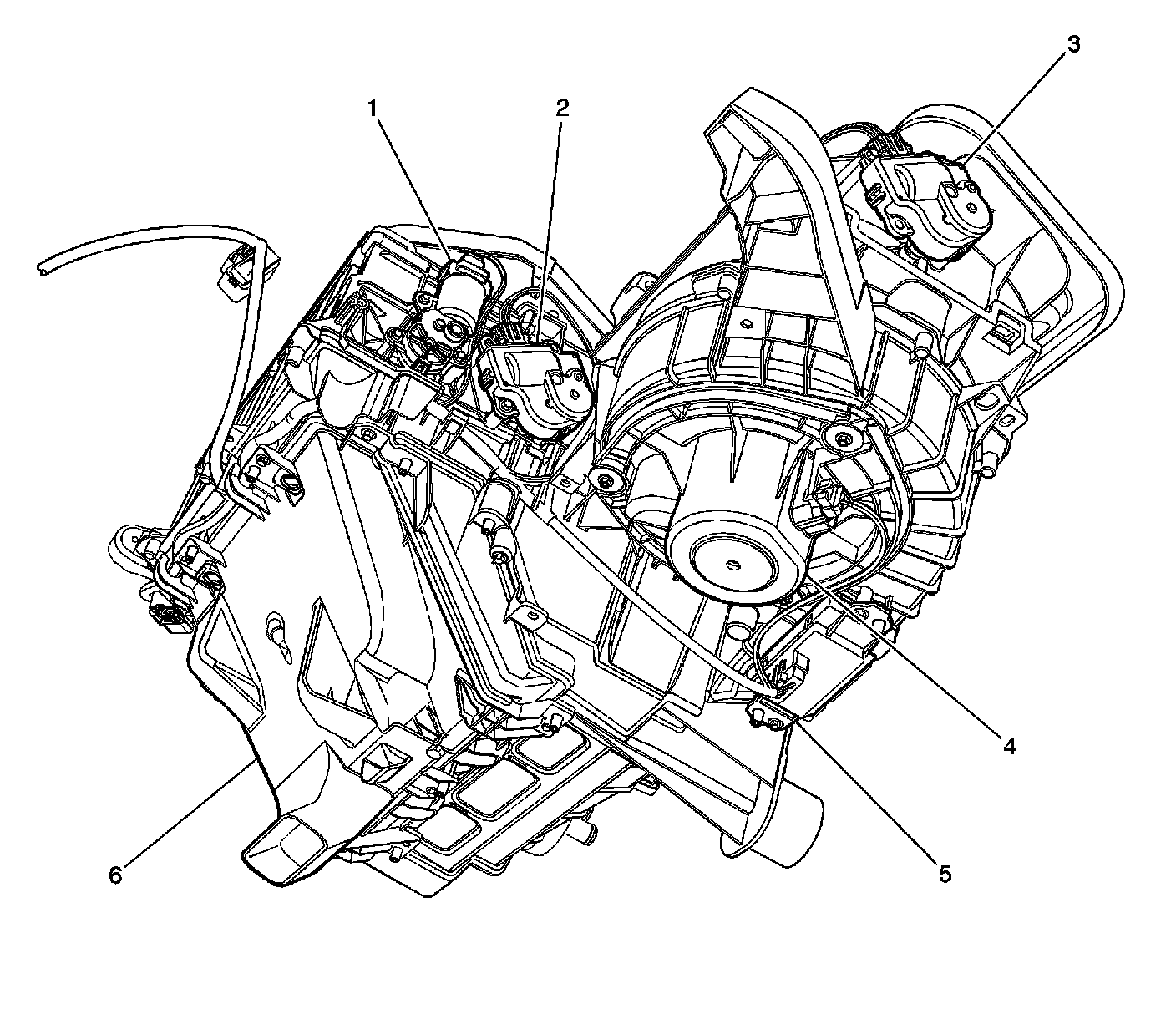

Interior HVAC Components1 - Mode Actuator
2 - Air Temperature Actuator
3 - Recirculation Actuator
4 - Blower Motor
5 - Blower Motor Control Processor
6 - HVAC Box
