Rear of the Engine

Harness Routing Views

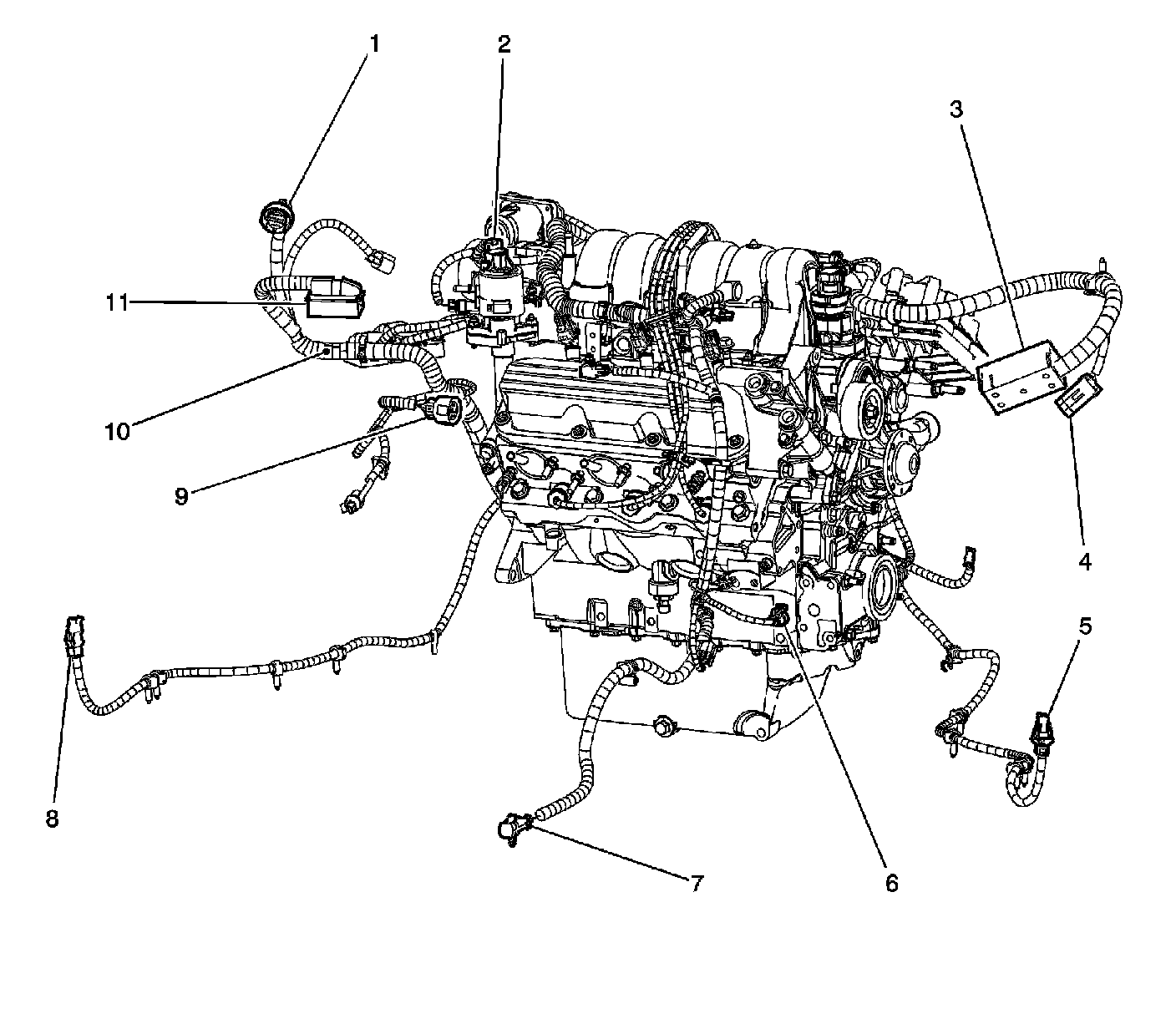

Rear of the Engine (L26)

1 - C101
2 - Evaporative Emission (EVAP) Canister Purge Solenoid
3 - Fuse Block - Underhood C1
4 - C104
5 - Wheel Speed Sensor (WSS) - RF Connector
6 - Engine Oil Pressure (EOP) Sensor Connector
7 - Heated Oxygen Sensor (HO2S) Connector
8 - Wheel Speed Sensor (WSS) - LF Connector
9 - C100
10 - S113 (NU3)
11 - Electronic Brake Control Module (EBCM) Connector
