Lamp Views
Harness Routing Views

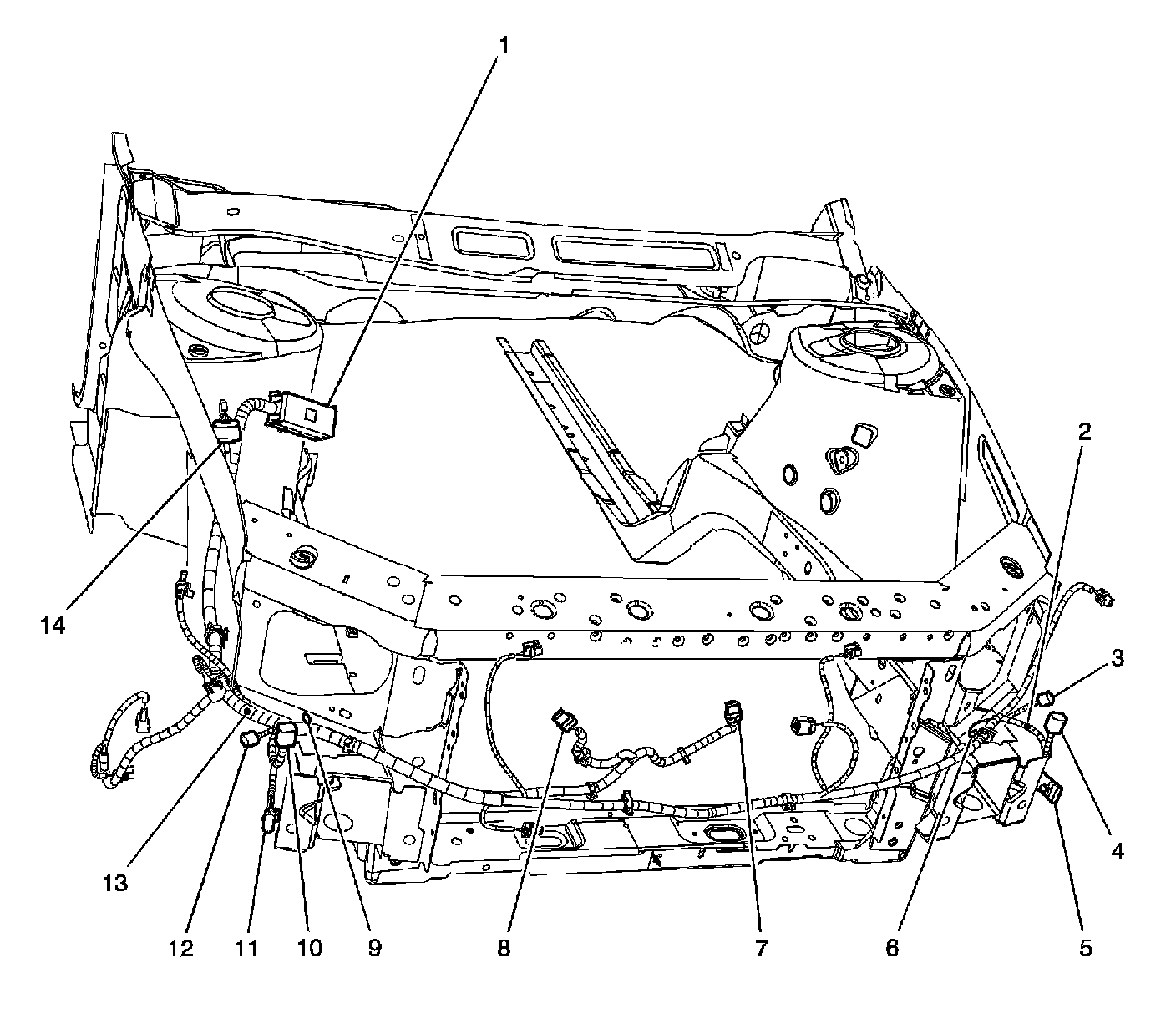

Forward Lamp Harness
1 - Fuse Block - Underhood C3
2 - S112
3 - C145
4 - C141
5 - C143
6 - G101
7 - Cooling Fan - Left Connector
8 - Cooling Fan - Right Connector
9 - G100
10 - C142
11 - C144
12 - C146
13 - S124
14 - C120
