G101

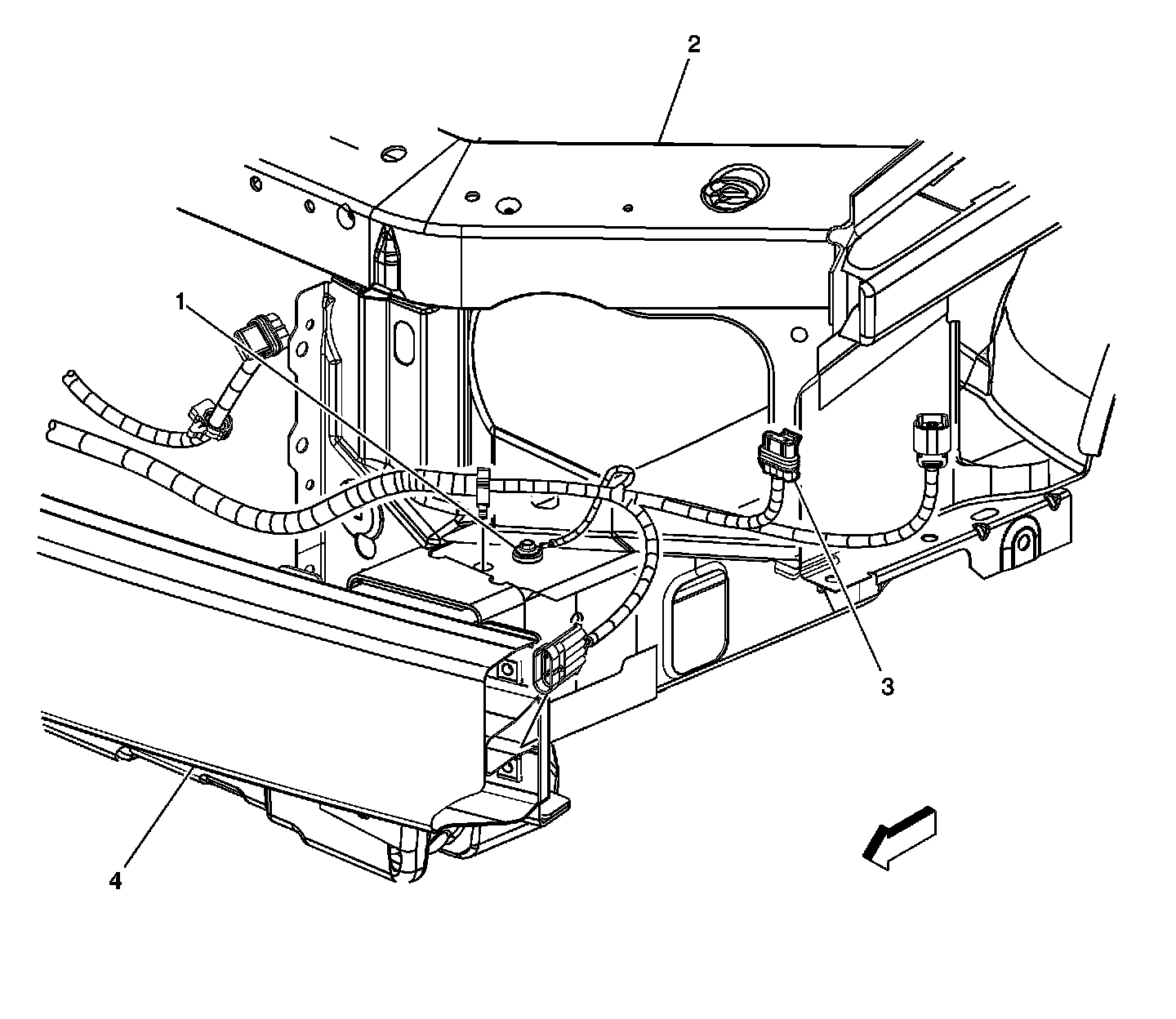

Power and Grounding Component Views

G101

1 - G101
2 - Core Support - LF
3 - Headlamp Connector
4 - Bumper - LF
