Vehicle Speed Sensor Assemble (FWD Only)

Vehicle Speed Sensor Assemble (FWD Only)





Important: Handle the vehicle speed sensor assembly carefully.

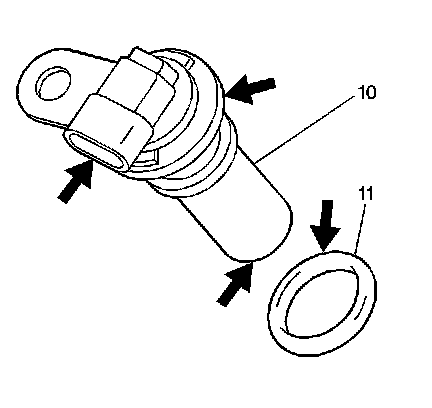

1. Inspect the vehicle speed sensor assembly (10) and the vehicle speed sensor O-ring seal (11) for the following conditions:

* Damaged connector
* Cracked housing
* Signs of rotor damage
* Cuts or nicks on the O-ring seal

2. Install a new O-ring seal (11) on the vehicle speed sensor assembly (10).

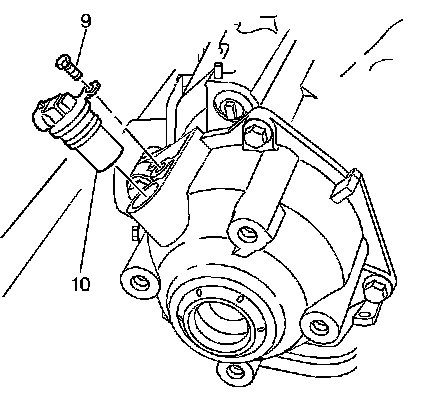

3. Install the vehicle speed sensor assembly (10) into the case extension.

Notice: Refer to Fastener Notice.

4. Install the vehicle speed sensor bolt (9).

Tighten the bolt to 12 N.m (106 lb in).
