Output Shaft Removal



Output Shaft Removal

Tools Required

J 42562 Axle Removal Wedge

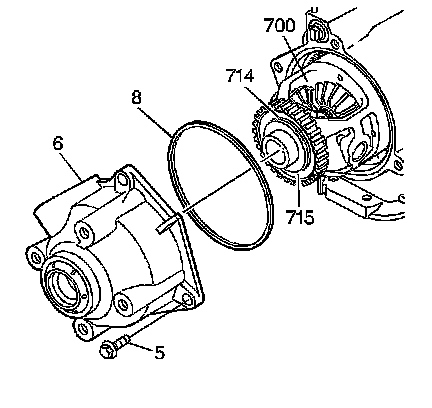

1. Remove the four case extension bolts (5).
2. Remove the case extension assembly (6) and remove the extension seal (8).
3. Leave the differential carrier thrust washer (714) and the bearing (715) on the carrier.

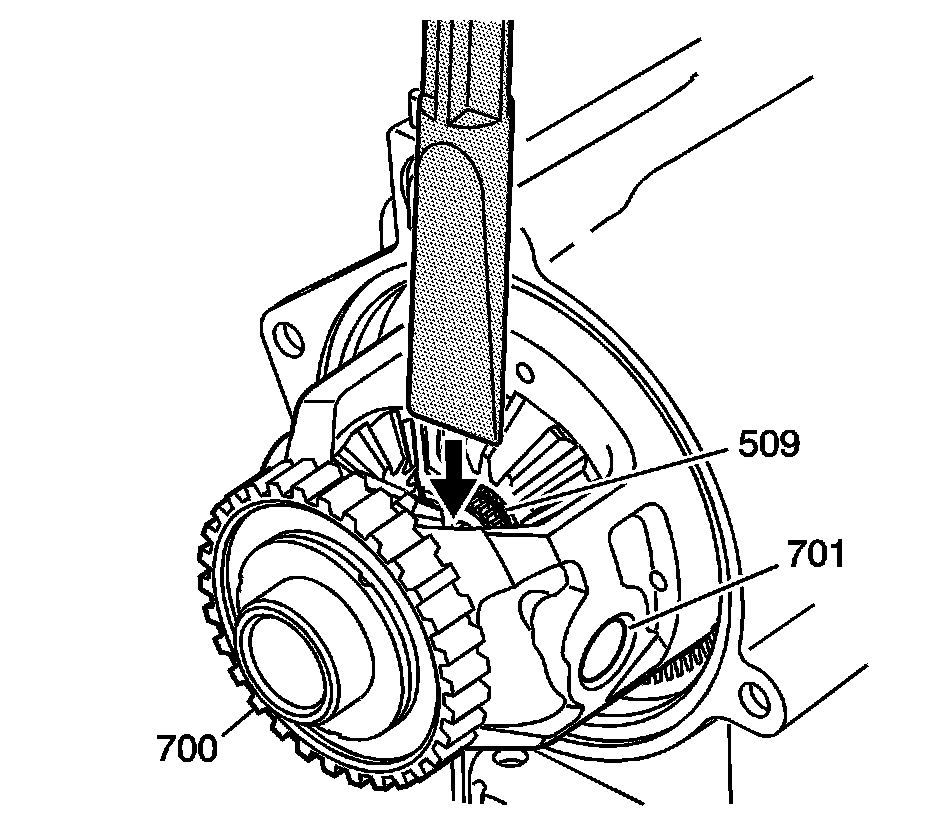

4. Rotate the differential carrier until the end of the output shaft can be seen and the differential pinion shaft (701) is in a horizontal position.
5. Place the J 42562 Axle Removal Wedge between the end of the output shaft and the differential pinion shaft.
6. Using a hammer, hit the end of the axle removal tool in order to compress the output shaft compression ring (509) and push the output shaft through the differential side gear.




7. Remove the differential carrier assembly (700).
8. Using snap ring pliers remove the compression ring (509) from the output shaft.




9. Pull the output shaft (510) out of the transmission.
