Front Suspension

Stabilizer Shaft Link Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the front wheels and tires.

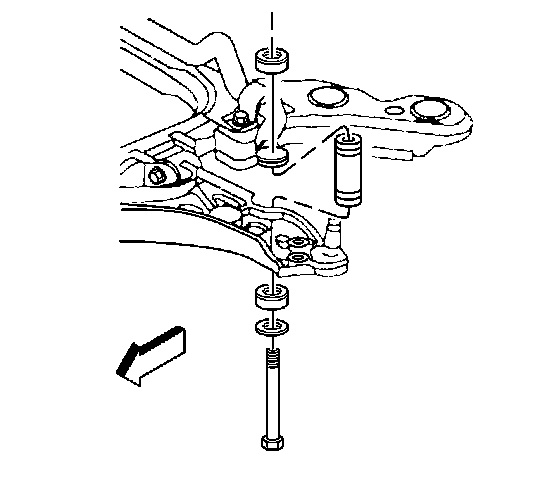

3. Remove the stabilizer shaft link bolt.




4. Remove the stabilizer shaft insulators and spacers.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Loosely install the stabilizer link components.

Tighten the stabilizer link nuts to 17 N.m (13 lb ft).

2. Install the front wheels and tires.
3. Lower the vehicle.
